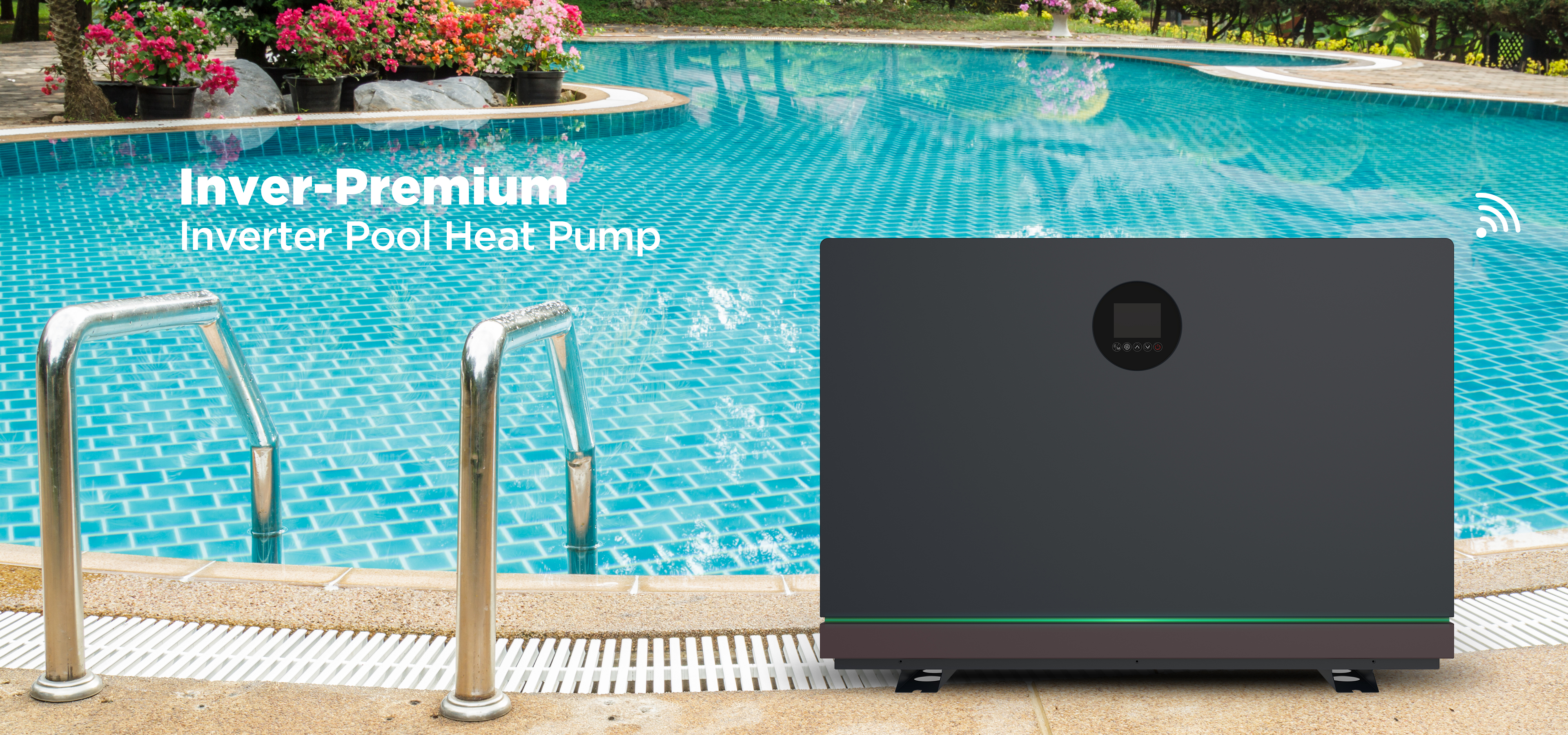

High-Performance R32 Swimming Pool Heat Pump by Solareast Heat Pump Ltd. for Optimal Energy Efficiency

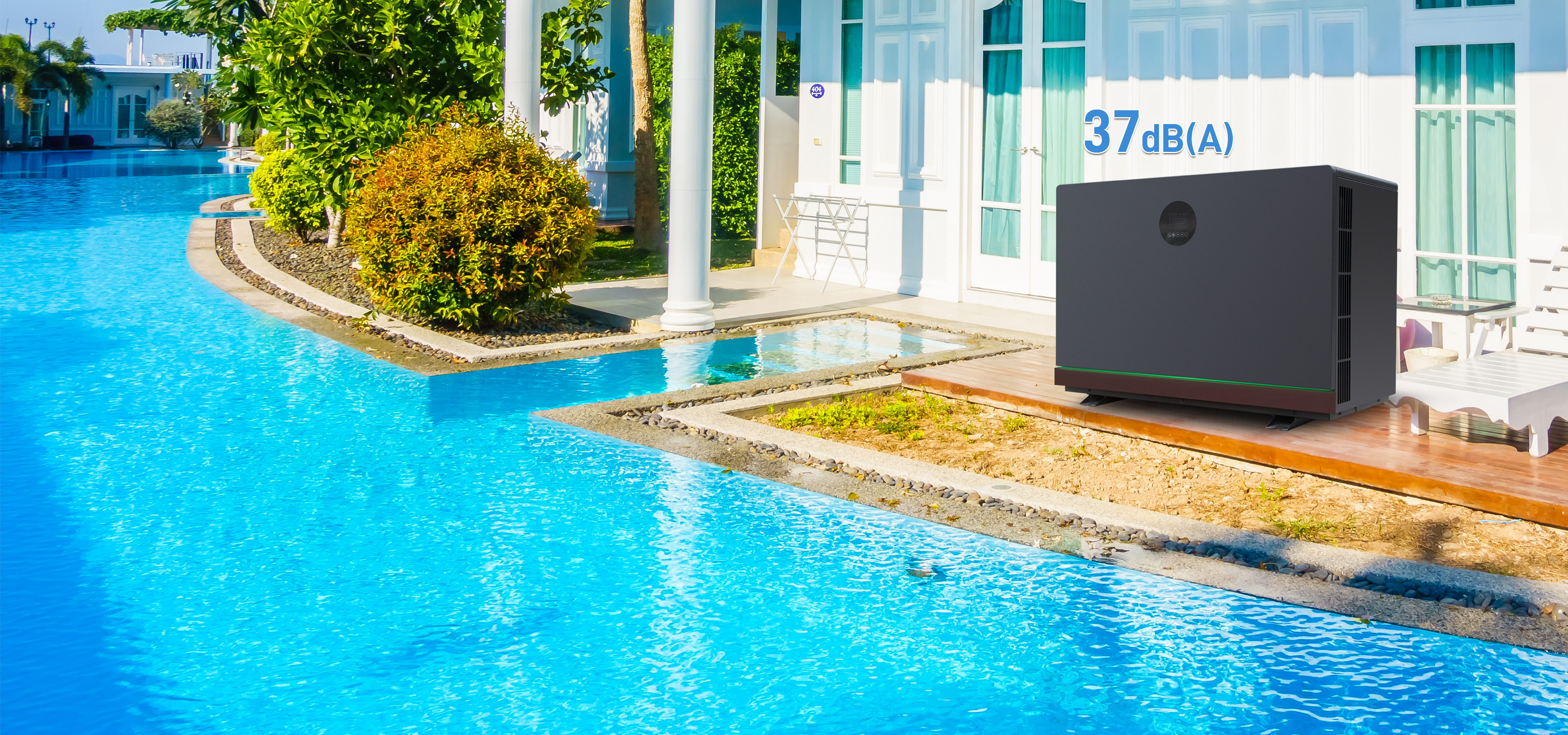

Silence Mode
In Silence Mode, the R32 Inver Premium Series Inverter Pool Heat Pump operates at an ultra-low noise level of 37 dB(A) at one meter. With inverter technology enabling the compressor and fan to run at minimal speeds when temperatures stabilize, the unit produces a barely perceptible sound, ensuring a tranquil pool environment.
Back Inlet Air Flow and Side Discharge
The Solareast inverter swimming pool heat pump features a back inlet air flow and side discharge design, optimizing airflow for improved efficiency and quieter operation. This configuration enhances heat exchange, ensuring stable and efficient temperature control across various weather conditions while reducing energy consumption for superior performance.
WiFi Remote Control
Equipped with WiFi remote control, the Solareast inverter swimming pool heat pump allows users to adjust and monitor settings anytime, anywhere via smartphone or tablet. This smart connectivity provides real-time temperature management, scheduling, and system notifications, delivering convenient control for maximum energy efficiency and user comfort.

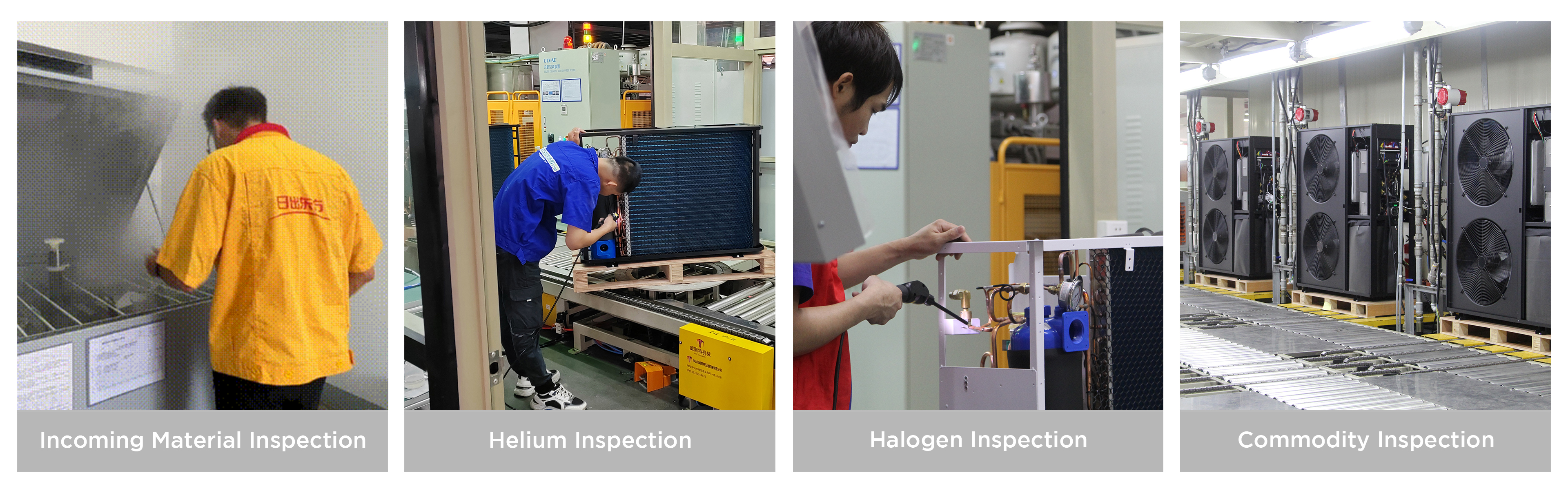

Quality Assurance
Solareast maintains rigorous quality assurance at every stage of production, from R&D to manufacturing. With a skilled team and advanced equipment, each heat pump undergoes extensive testing to ensure top-tier performance and durability. By refining quality control measures continuously, Solareast demonstrates a commitment to excellence and long-term product reliability.

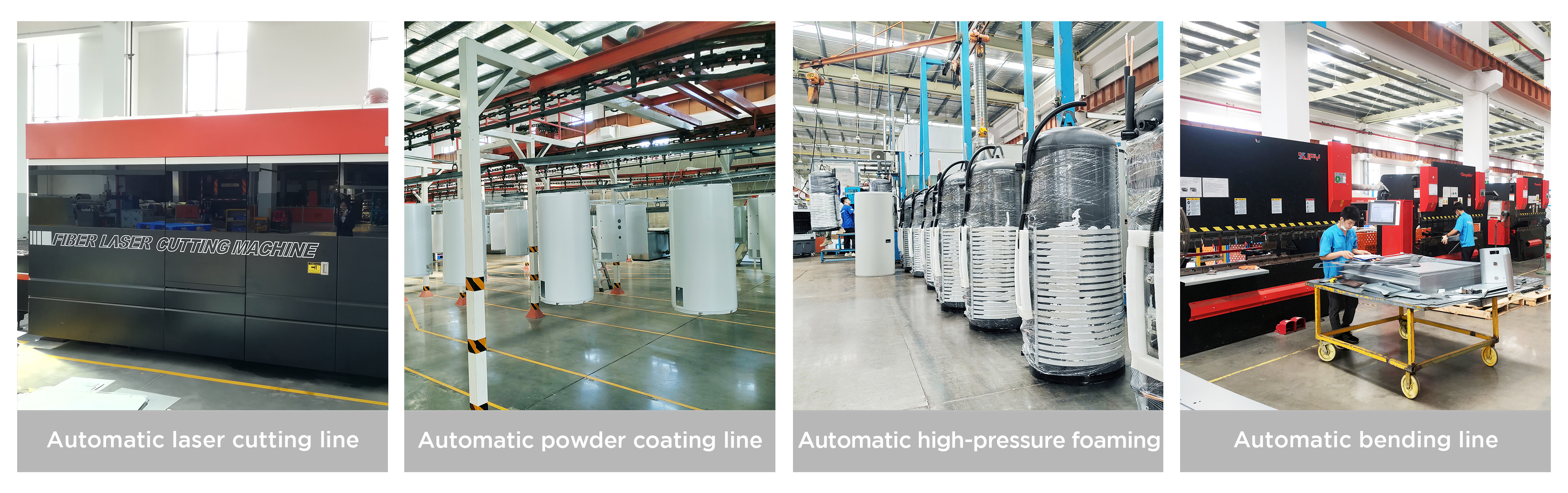

Automated Equipment
Solareast’s production facilities are equipped with advanced automation systems, including precision laser cutting, durable powder coating, high-pressure foaming, and exact bending processes. These automated technologies guarantee uniform quality across all products, aligning with strict manufacturing standards to meet growing market demands for premium heat pumps.
Solareast Overseas Product Showroom
To expand into the global market, Solareast has set up a 1200-square-meter overseas showroom to display heat pumps, water tanks, solar systems and other products. The showroom, which attracted a lot of attention during the Canton Fair, provides an immersive platform for customers to experience Solareast's innovative eco-friendly technologies and highlights the brand's focus on sustainable, high-performance products.
High-Performance R32 Swimming Pool Heat Pump by Solareast Heat Pump Ltd. for Optimal Energy Efficiency
Silence Mode
In Silence Mode, the R32 Inver Premium Series Inverter Pool Heat Pump operates at an ultra-low noise level of 37 dB(A) at one meter. With inverter technology enabling the compressor and fan to run at minimal speeds when temperatures stabilize, the unit produces a barely perceptible sound, ensuring a tranquil pool environment.
Back Inlet Air Flow and Side Discharge
The Solareast inverter swimming pool heat pump features a back inlet air flow and side discharge design, optimizing airflow for improved efficiency and quieter operation. This configuration enhances heat exchange, ensuring stable and efficient temperature control across various weather conditions while reducing energy consumption for superior performance.
WiFi Remote Control
Equipped with WiFi remote control, the Solareast inverter swimming pool heat pump allows users to adjust and monitor settings anytime, anywhere via smartphone or tablet. This smart connectivity provides real-time temperature management, scheduling, and system notifications, delivering convenient control for maximum energy efficiency and user comfort.
Quality Assurance
Solareast maintains rigorous quality assurance at every stage of production, from R&D to manufacturing. With a skilled team and advanced equipment, each heat pump undergoes extensive testing to ensure top-tier performance and durability. By refining quality control measures continuously, Solareast demonstrates a commitment to excellence and long-term product reliability.
Automated Equipment
Solareast’s production facilities are equipped with advanced automation systems, including precision laser cutting, durable powder coating, high-pressure foaming, and exact bending processes. These automated technologies guarantee uniform quality across all products, aligning with strict manufacturing standards to meet growing market demands for premium heat pumps.
Solareast Overseas Product Showroom
To expand into the global market, Solareast has set up a 1200-square-meter overseas showroom to display heat pumps, water tanks, solar systems and other products. The showroom, which attracted a lot of attention during the Canton Fair, provides an immersive platform for customers to experience Solareast's innovative eco-friendly technologies and highlights the brand's focus on sustainable, high-performance products.
Model | BYC-007TH1 | BYC-010TH1 | BYC-013TH1 | BYC-017TH1 | BYC-021TH1 | BYC-025TH1 |
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||
Heating Capacity (kW) | 7.0~1.7 | 9~2.3 | 12.5~3.0 | 16.5~3.8 | 20.5~4.8 | 25~6.8 |
Power Input (kW) | 1.04~0.12 | 1.34~0.16 | 1.84~0.21 | 2.46~0.25 | 3.06~0.32 | 3.73~0.44 |
COP | 14.5~6.7 | 14.3~6.7 | 14.5~6.8 | 15~6.7 | 15~6.7 | 15.5~6.7 |
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||
Heating Capacity (kW) | 5.3~1.3 | 6.8~1.7 | 9.3~2.2 | 12.3~2.8 | 15.0~3.5 | 19.0~4.9 |
Power Input (kW) | 1.06~0.17 | 1.39~0.23 | 1.86~0.29 | 2.51~0.37 | 3.06~0.47 | 3.88~0.65 |
COP | 7.5~5.0 | 7.5~4.9 | 7.5~5.0 | 7.5~4.9 | 7.5~4.9 | 7.5~4.9 |
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||
Cooling Capacity (kW) | 3.7~1.0 | 4.9~1.4 | 6.5~1.8 | 8.2~2.3 | 10.2~2.8 | 12.5~3.8 |
Power Input (kW) | 1.0~0.15 | 1.32~0.21 | 1.76~0.27 | 2.22~0.35 | 2.76~0.42 | 3.38~0.58 |
EER | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 |
* General data | ||||||
Power supply | 220~240V/1/50 | |||||
Max Power Input (kW) | 1.4 | 1.7 | 2.1 | 2.5 | 3.1 | 4.3 |
Max Current (A) | 6.6 | 8.1 | 10 | 11.9 | 14.7 | 20.5 |
Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 |
Refrigerant | R32 | |||||
Heat Exchanger | Titanium | |||||
Air Flow Direction | Horizontal | |||||
Kind of defrost | by 4 way valve | |||||
Working temp. range (℃) | -15~43 | |||||
Casing Material | Aluminum alloy & Metal | |||||
Water Proof Level | IPX4 | |||||
Noise level 1m dB(A) | 37~46 | 38~47 | 40~49 | 41~51 | 41~52 | 42~52 |
Noise level 10m dB(A) | 18~27 | 19~28 | 20~29 | 21~31 | 21~32 | 23~33 |
Net Weight (kg) | 46 | 48 | 55 | 63 | 68 | 88 |
Gross Weight (kg) | 56 | 58 | 65 | 73 | 78 | 98 |
Net Dimensions (mm) | 870*420*640 | 1050*420*690 | 1050*420*900 | |||
Package Dimensions (mm) | 930*470*760 | 1110*470*810 | 1110*470*1020 |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
Model | BYC-007TH1 | BYC-010TH1 | BYC-013TH1 | BYC-017TH1 | BYC-021TH1 | BYC-025TH1 |
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||
Heating Capacity (kW) | 7.0~1.7 | 9~2.3 | 12.5~3.0 | 16.5~3.8 | 20.5~4.8 | 25~6.8 |
Power Input (kW) | 1.04~0.12 | 1.34~0.16 | 1.84~0.21 | 2.46~0.25 | 3.06~0.32 | 3.73~0.44 |
COP | 14.5~6.7 | 14.3~6.7 | 14.5~6.8 | 15~6.7 | 15~6.7 | 15.5~6.7 |
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||
Heating Capacity (kW) | 5.3~1.3 | 6.8~1.7 | 9.3~2.2 | 12.3~2.8 | 15.0~3.5 | 19.0~4.9 |
Power Input (kW) | 1.06~0.17 | 1.39~0.23 | 1.86~0.29 | 2.51~0.37 | 3.06~0.47 | 3.88~0.65 |
COP | 7.5~5.0 | 7.5~4.9 | 7.5~5.0 | 7.5~4.9 | 7.5~4.9 | 7.5~4.9 |
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||
Cooling Capacity (kW) | 3.7~1.0 | 4.9~1.4 | 6.5~1.8 | 8.2~2.3 | 10.2~2.8 | 12.5~3.8 |
Power Input (kW) | 1.0~0.15 | 1.32~0.21 | 1.76~0.27 | 2.22~0.35 | 2.76~0.42 | 3.38~0.58 |
EER | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 |
* General data | ||||||
Power supply | 220~240V/1/50 | |||||
Max Power Input (kW) | 1.4 | 1.7 | 2.1 | 2.5 | 3.1 | 4.3 |
Max Current (A) | 6.6 | 8.1 | 10 | 11.9 | 14.7 | 20.5 |
Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 |
Refrigerant | R32 | |||||
Heat Exchanger | Titanium | |||||
Air Flow Direction | Horizontal | |||||
Kind of defrost | by 4 way valve | |||||
Working temp. range (℃) | -15~43 | |||||
Casing Material | Aluminum alloy & Metal | |||||
Water Proof Level | IPX4 | |||||
Noise level 1m dB(A) | 37~46 | 38~47 | 40~49 | 41~51 | 41~52 | 42~52 |
Noise level 10m dB(A) | 18~27 | 19~28 | 20~29 | 21~31 | 21~32 | 23~33 |
Net Weight (kg) | 46 | 48 | 55 | 63 | 68 | 88 |
Gross Weight (kg) | 56 | 58 | 65 | 73 | 78 | 98 |
Net Dimensions (mm) | 870*420*640 | 1050*420*690 | 1050*420*900 | |||
Package Dimensions (mm) | 930*470*760 | 1110*470*810 | 1110*470*1020 |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
