EFFICACIOUS HEAT PUMPS

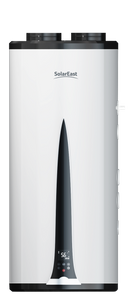

With advanced design and manufacture, the SOLAREAST Wall Mounted heat pump water heater hot water systems deliver a comprehensive set of installation configurations perfect for the various site-specific requirements around the world. They are available in a range of capacity sizes to further customize their capabilities to suit the application.
SOLAREAST ALL IN ONE MODEL
The small design eliminates the need for refrigerant pipes because it incorporates the heat pump unit and all hydraulic components.
Realized are simple installation and upkeep.
ECO SELECT: ECONOMICAL OR ENVIRONMENTALLY FRIENDLY HEATING
Heat pump water heater SOLAREAST Wall Mounted heat pump is especially well suited for enhancing an already installed heating system.
It delivers the base load at a reasonable cost, and the boiler only comes on during really cold conditions.
With SOLAREAST Wall Mounted heat pump water heater, users may then choose whether their energy system should operate with the lowest CO2 emissions per kilowatt hour of produced thermal energy or automatically choose the cheapest energy source currently available.
MODERN HEAT PUMPS ARE EFFECTIVE, PRACTICAL, AND ENVIRONMENTALLY FRIENDLY
SOLAREAST's cutting-edge heat pump technology meets the needs of each specific application in a variety of ways.
The SOLAREAST Wall Mounted Heat Pump Water Heater is specifically made for modernization and has a flow temperature of up to 75 °C.
For new construction, the SOLAREAST Wall Mounted Heat Pump Water Heater is the preferred option.
High efficiency, intuitive app-based control, and sustainable operation are notable advantages.
Easy-to-use diagnostic tools
For end-users like hotels, hostels, and restaurants, etc., the SOLAREAST Heat Pump Water Heater Wall Mounted-Vertical series is made for simple & straightforward operation in the field.
These devices include a "Simple User Interface" that enables service personnel to get early notifications of field failures and straightforward error codes for quick diagnosis and troubleshooting. As a result, the system's lifespan is extended and downtime is decreased.
Future has already
SOLAREAST air source heat pumps provide comfort while protecting the environment by heating water with air.
The SOLAREAST heat pump water heater line comes in both monoblock and split configurations, can be mounted on the wall or the floor, and has a capacity ranging from 60 to 100 liters.
SOLAREAST range can be used as a renewable energy source in place of solar thermal in new construction.
EFFICACIOUS HEAT PUMPS
With advanced design and manufacture, the SOLAREAST Wall Mounted heat pump water heater hot water systems deliver a comprehensive set of installation configurations perfect for the various site-specific requirements around the world. They are available in a range of capacity sizes to further customize their capabilities to suit the application.
SOLAREAST ALL IN ONE MODEL
The small design eliminates the need for refrigerant pipes because it incorporates the heat pump unit and all hydraulic components.
Realized are simple installation and upkeep.
ECO SELECT: ECONOMICAL OR ENVIRONMENTALLY FRIENDLY HEATING
Heat pump water heater SOLAREAST Wall Mounted heat pump is especially well suited for enhancing an already installed heating system.
It delivers the base load at a reasonable cost, and the boiler only comes on during really cold conditions.
With SOLAREAST Wall Mounted heat pump water heater, users may then choose whether their energy system should operate with the lowest CO2 emissions per kilowatt hour of produced thermal energy or automatically choose the cheapest energy source currently available.
MODERN HEAT PUMPS ARE EFFECTIVE, PRACTICAL, AND ENVIRONMENTALLY FRIENDLY
SOLAREAST's cutting-edge heat pump technology meets the needs of each specific application in a variety of ways.
The SOLAREAST Wall Mounted Heat Pump Water Heater is specifically made for modernization and has a flow temperature of up to 75 °C.
For new construction, the SOLAREAST Wall Mounted Heat Pump Water Heater is the preferred option.
High efficiency, intuitive app-based control, and sustainable operation are notable advantages.
Easy-to-use diagnostic tools
For end-users like hotels, hostels, and restaurants, etc., the SOLAREAST Heat Pump Water Heater Wall Mounted-Vertical series is made for simple & straightforward operation in the field.
These devices include a "Simple User Interface" that enables service personnel to get early notifications of field failures and straightforward error codes for quick diagnosis and troubleshooting. As a result, the system's lifespan is extended and downtime is decreased.
Future has already
SOLAREAST air source heat pumps provide comfort while protecting the environment by heating water with air.
The SOLAREAST heat pump water heater line comes in both monoblock and split configurations, can be mounted on the wall or the floor, and has a capacity ranging from 60 to 100 liters.
SOLAREAST range can be used as a renewable energy source in place of solar thermal in new construction.
Model No. | YT-060GH | YT-080GH | YT-100GH |
Power Supply | |||
Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃ | |||
Heating Capacity (W) | 600 | ||
Power Input (W) | 169 | ||
COP | 3.50 | ||
Hot Water Production(L/h) | 12L/h | ||
Refrigerant | R134a | ||
Electric Heating Element(kW) | 2 | ||
Rate Current(A) | 9.3 | ||
Max Power Input(kW) | 2.5 | ||
Max Current(A) | 11.4 | ||
Water Tank Volume(L) | 60 | 80 | 100 |
Heax exchanger | Microchannel | ||
Max Water Tank Pressure | 0.8MPa | ||
IP Class | IPX4 | ||
Working temperature range(℃) | -7~43 | ||
Net Dimension(mm) | Φ470*890 | Φ470*1140 | Φ470*1180 |
Package Dimension(L*W*H)(mm) | 565*570*960 | 565*570*1110 | 565*570*1250 |
Net Weight(kg) | 39 | 42 | 50 |
Gross Weight(kg) | 43 | 46 | 54 |
Noise(dB(A)) | 38 | ||
Air Duct | Non-ducted |
Model No. | YT-060GH | YT-080GH | YT-100GH |
Power Supply | |||
Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃ | |||
Heating Capacity (W) | 600 | ||
Power Input (W) | 169 | ||
COP | 3.50 | ||
Hot Water Production(L/h) | 12L/h | ||
Refrigerant | R134a | ||
Electric Heating Element(kW) | 2 | ||
Rate Current(A) | 9.3 | ||
Max Power Input(kW) | 2.5 | ||
Max Current(A) | 11.4 | ||
Water Tank Volume(L) | 60 | 80 | 100 |
Heax exchanger | Microchannel | ||
Max Water Tank Pressure | 0.8MPa | ||
IP Class | IPX4 | ||
Working temperature range(℃) | -7~43 | ||
Net Dimension(mm) | Φ470*890 | Φ470*1140 | Φ470*1180 |
Package Dimension(L*W*H)(mm) | 565*570*960 | 565*570*1110 | 565*570*1250 |
Net Weight(kg) | 39 | 42 | 50 |
Gross Weight(kg) | 43 | 46 | 54 |
Noise(dB(A)) | 38 | ||
Air Duct | Non-ducted |
