Solareast's R290 air-to-water heat pumps offer a compact solution for heating,coolingand hot water needs. With the eco-friendly R290 refrigerant, these pumps minimize carbon emissions while ensuring high efficiency. Solareast's commitment to sustainability drives us to contribute to a greener future and achieve global carbon neutrality. Join us in creating a more environmentally friendly world.
Solareast's Monoblock heat pump R290 brings advanced design and cutting-edge heat pump technology together for exceptional performance. The heat pump uses eco-friendly R290 green refrigerant and inverter technology and meets high efficiency, stability, and noise criteria, ensuring maximum end-user satisfaction. The Monoblock heat pump R290 holds an A+++ energy label and delivers superior energy efficiency while functioning at 35℃ water outlet temperature, allowing for significant savings on energy bills and an investment in an environmentally conscious, sustainable future.
Solareast air source heat pump thrives in frigid temperatures, operating flawlessly even at -25°C. Experience uninterrupted heating performance when you need it most. With our reliable technology, winter chills are no match for our resilient air source heat pump.
You can enjoy tailor-made comfort with the air source heat pump's dual temperature zone, magnifying your living room floor heating to a comfortable 35°C and your room heater to 55°C, providing an ideal environment. With our new dual temperature zone function, we designed to elevate comfort and convenience at its best.
Optimize dealer efficiency and save on labor costs with Solareast's IoT customer management platform. Connect with WIFI or DUT for remote data monitoring, recording all operating parameters of units, and keeping the management systems of dealers and manufacturers up to date. If an error report arises, dealers can interpret this report to provide the best solutions to users in a timely fashion.
Solareast understands the importance of a peaceful atmosphere, and Monoblock Heat Pump R290 embraces cutting-edge noise reduction technologies. Achieve tranquility with compressor stepless speed regulation and full DC technology, enabling precise 1Hz frequency control.Stiffer ABS blades increase wind resistance to better reduce noise generation.
Stay connected with our innovative air source heat pump, which includes a 5G/2.4G Compatible WIFI Module. Using your smartphone or tablet, you can operate and monitor your heat pump system from anywhere. For maximum comfort and energy efficiency, enjoy the simplicity of altering settings, scheduling temperature adjustments, and getting real-time notifications.
The range of R290 air-to-water heat pumps is designed to deliver exceptional energy-saving benefits for heating and domestic hot water production. These pumps effectively harness the ambient air to transfer heat to the water system, resulting in reduced energy consumption and substantial cost savings. With our air-to-water heat pumps, you can enjoy eco-friendly and cost-effective heating solutions.
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready

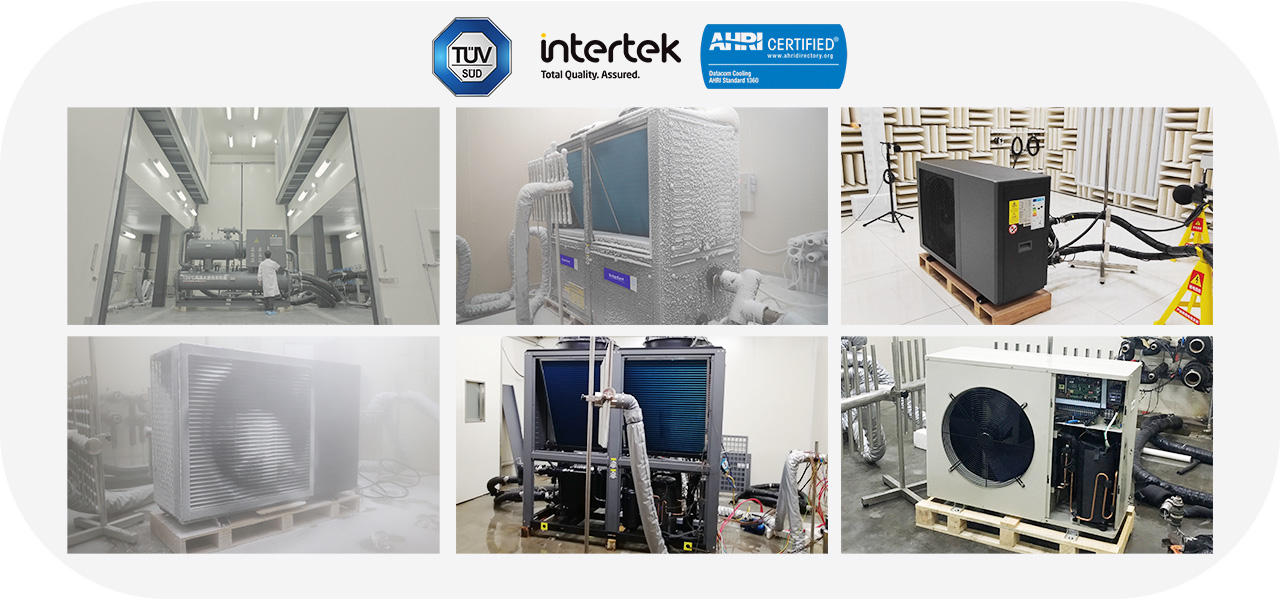

Solareast’s investment in a $3 million advanced testing facility reflects its commitment to quality and innovation. This state-of-the-art laboratory simulates operating conditions ranging from -30°C to 52°C, ensuring that products perform reliably in the most extreme environments. The facility conducts comprehensive tests for safety, efficiency, and durability, ensuring compliance with international standards such as TUV and Intertek.
A1: Yes. The BLN Series R290 heat pump is designed to operate efficiently even in cold weather. With a minimum ambient temperature operation range down to -25°C and SG Ready functionality, it’s suitable for cold regions in Europe and beyond. Its inverter compressor ensures stable heating performance while reducing energy consumption in harsh conditions.
A2: Absolutely. The BLN Series supports SG Ready functionality, making it ideal for integration with smart grids and PV systems. It also features intelligent inverter control and can be paired with smart home energy management systems for optimized energy usage and remote monitoring.
A3: This model is suitable for multiple applications including underfloor heating, domestic hot water, and even space cooling during summer. Thanks to its reversible cycle and modular design, it can be used in homes, villas, and light commercial spaces needing a year-round climate solution.
Solareast's R290 air-to-water heat pumps offer a compact solution for heating,coolingand hot water needs. With the eco-friendly R290 refrigerant, these pumps minimize carbon emissions while ensuring high efficiency. Solareast's commitment to sustainability drives us to contribute to a greener future and achieve global carbon neutrality. Join us in creating a more environmentally friendly world.
Solareast's Monoblock heat pump R290 brings advanced design and cutting-edge heat pump technology together for exceptional performance. The heat pump uses eco-friendly R290 green refrigerant and inverter technology and meets high efficiency, stability, and noise criteria, ensuring maximum end-user satisfaction. The Monoblock heat pump R290 holds an A+++ energy label and delivers superior energy efficiency while functioning at 35℃ water outlet temperature, allowing for significant savings on energy bills and an investment in an environmentally conscious, sustainable future.
Solareast air source heat pump thrives in frigid temperatures, operating flawlessly even at -25°C. Experience uninterrupted heating performance when you need it most. With our reliable technology, winter chills are no match for our resilient air source heat pump.
You can enjoy tailor-made comfort with the air source heat pump's dual temperature zone, magnifying your living room floor heating to a comfortable 35°C and your room heater to 55°C, providing an ideal environment. With our new dual temperature zone function, we designed to elevate comfort and convenience at its best.
Optimize dealer efficiency and save on labor costs with Solareast's IoT customer management platform. Connect with WIFI or DUT for remote data monitoring, recording all operating parameters of units, and keeping the management systems of dealers and manufacturers up to date. If an error report arises, dealers can interpret this report to provide the best solutions to users in a timely fashion.
Solareast understands the importance of a peaceful atmosphere, and Monoblock Heat Pump R290 embraces cutting-edge noise reduction technologies. Achieve tranquility with compressor stepless speed regulation and full DC technology, enabling precise 1Hz frequency control.Stiffer ABS blades increase wind resistance to better reduce noise generation.
Stay connected with our innovative air source heat pump, which includes a 5G/2.4G Compatible WIFI Module. Using your smartphone or tablet, you can operate and monitor your heat pump system from anywhere. For maximum comfort and energy efficiency, enjoy the simplicity of altering settings, scheduling temperature adjustments, and getting real-time notifications.
The range of R290 air-to-water heat pumps is designed to deliver exceptional energy-saving benefits for heating and domestic hot water production. These pumps effectively harness the ambient air to transfer heat to the water system, resulting in reduced energy consumption and substantial cost savings. With our air-to-water heat pumps, you can enjoy eco-friendly and cost-effective heating solutions.
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready
Solareast’s investment in a $3 million advanced testing facility reflects its commitment to quality and innovation. This state-of-the-art laboratory simulates operating conditions ranging from -30°C to 52°C, ensuring that products perform reliably in the most extreme environments. The facility conducts comprehensive tests for safety, efficiency, and durability, ensuring compliance with international standards such as TUV and Intertek.
A1: Yes. The BLN Series R290 heat pump is designed to operate efficiently even in cold weather. With a minimum ambient temperature operation range down to -25°C and SG Ready functionality, it’s suitable for cold regions in Europe and beyond. Its inverter compressor ensures stable heating performance while reducing energy consumption in harsh conditions.
A2: Absolutely. The BLN Series supports SG Ready functionality, making it ideal for integration with smart grids and PV systems. It also features intelligent inverter control and can be paired with smart home energy management systems for optimized energy usage and remote monitoring.
A3: This model is suitable for multiple applications including underfloor heating, domestic hot water, and even space cooling during summer. Thanks to its reversible cycle and modular design, it can be used in homes, villas, and light commercial spaces needing a year-round climate solution.
| Model | BLN-006TC1 | BLN-008TC1 | BLN-008TC3 | BLN-012TC1 | BLN-012TC3 | BLN-018TC1 | BLN-018TC3 | ||
| Power Supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 80~415/3/50 | 380~415V/3/50 | 380~415V/3/50 | 220~240/1/50 | 380~415V/3/50 | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 2.92 ~ 9.10 | 4.10 -12.10 | 4.10 -12.10 | 4.30 ~ 15.20 | 4.30 ~ 15.20 | 7.24 ~ 21.90 | 7.24 ~ 21.90 |
| Power Input | kW | 0.61 ~ 2.11 | 0.61 ~ 2.11 | 0.79 -2.85 | 0.87 ~ 3.73 | 0.87 ~ 3.73 | 1.50 ~ 5.88 | 1.50 ~ 5.88 | |
| Current Input | A | 2.80 ~ 9.25 | 2.80 ~ 9.25 | 3.45-13.04 | 4.02 ~ 16.38 | 1.78 ~ 6.04 | 6.86 ~ 30.25 | 2.82 ~ 9.16 | |
| COP | W/W | 4.31 ~ 5.66 | 4.31 ~ 5.66 | 4.24 - 5.57 | 4.07 ~ 5.57 | 4.07 ~ 5.57 | 3.82 ~ 5.59 | 3.82 ~ 5.59 | |
| Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 2.99 ~ 8.16 | 2.99~8.16 | 4.05-12.15 | 4.25 ~ 14.55 | 4.25 ~ 14.55 | 6.36 ~ 19.45 | 6.36 ~ 19.45 |
| Power Input | kW | 1.03 ~ 2.92 | 1.03~2.92 | 1.38-4.06 | 1.45 ~ 4.28 | 1.45 ~ 4.28 | 2.15 ~ 6.85 | 2.15 ~ 6.85 | |
| Current Input | A | 4.57 ~ 12.79 | 4.57~12.79 | 5.73-17.70 | 6.71 ~ 18.80 | 2.84 ~ 6.78 | 9.84 ~ 30.12 | 9.84 ~ 30.12 | |
| COP | W/W | 2.79 ~ 3.46 | 2.79 ~ 3.46 | 2.99 - 3.45 | 2.83 ~ 3.45 | 2.83 ~ 3.45 | 2.84 ~ 3.57 | 2.84 ~ 3.57 | |
| Nominal Heating (Max) (A357/24℃,W12/7℃) | Heating Capacity | kW | 1.38 ~ 5.70 | 1.38~5.70 | 3.65-8.59 | 3.65 ~ 11.04 | 3.65 ~ 11.04 | 4.55 ~ 17.20 | 4.55 ~ 17.20 |
| Power Input | kW | 0.67 ~ 2.44 | 0.67~2.44 | 1.12-3.31 | 1.12~3.97 | 1.12 ~ 3.97 | 1.85 ~ 7.31 | 1.85 ~ 7.31 | |
| Current Input | A | 3.06 ~ 10.27 | 3.06~10.27 | 5.18-14.47 | 5.18~17.44 | 1.97 ~ 6.30 | 8.47 ~ 32.1 | 2.99 ~ 11.26 | |
| ERP Level（Outlet water temp. at 35℃） | / | A+++ | |||||||
| Rated Input Power | kW | 3.5 | 3.5 | 5.40 | 5.85 | 5.85 | 7.5 | 10.5 | |
| Rated Input Current | A | 15 | 15 | 25 | 25 | 10 | 35 | 17 | |
| Refrigerant Type / Charge / GWP | ... / kg | R290 / 0.55 / 3 | R290 / 1.05 / 3 | R290 / 1.05 /3 | R290 / 1.05 / 3 | R290 / 1.05 / 3 | R290 / 1.4 / 3 | R290 / 1.4 / 3 | |
| Rated water flow | m³/h | 1 | 1.4 | 1.4 | 2.06 | 2.06 | 3.1 | 3.1 | |
| Fan quantity | / | 1 | |||||||
| Fan motor type | / | DC inverter | |||||||
| Compressor | / | DC inverter | |||||||
| Circulating pump | / | Inverter type / Built ~ in | |||||||
| IP Class | / | IPX4 | |||||||
| Sound pressure at 1m distance | dB(A) | 46 | 43 | 43 | 53 | 54 | 56 | 56 | |
| Max. outlet water Temp. | °C | 75 | |||||||
| Water Piping Connections | inch | G1 | G1 | G1 | G1 | G1 | G1 ~ 1 / 4 | G1 ~ 1 / 4 | |
| Water Pressure Drop | kPa | 20 | 20 | 20 | 20 | 20 | 50 | 50 | |
| Operating temperature range (Heating mode) | °C | ~ 25~45 | |||||||
| Operating temperature range (Cooing mode) | °C | 16~45 | |||||||
| Unpacked Dimensions ( L×D×H ) | mm | 1187*418*805 | 1287*448*904 | 1287*448*904 | 1287*448*904 | 1287*448*904 | 1187*488*1456 | 1187*488*1456 | |
| Packed Dimensions ( L×D×H ) | mm | 1217*463*920 | 1317*493*1020 | 1317*493*1020 | 1317*493*1020 | 1317*493*1020 | 1217*538*1570 | 1217*538*1570 | |
| UnPacked Weight | kg | 110 | 134 | 134 | 134 | 134 | 195 | 195 | |
| Packed Weight | kg | 122 | 146 | 146 | 146 | 146 | 208 | 208 | |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
| Model | BLN-006TC1 | BLN-008TC1 | BLN-008TC3 | BLN-012TC1 | BLN-012TC3 | BLN-018TC1 | BLN-018TC3 | ||
| Power Supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 80~415/3/50 | 380~415V/3/50 | 380~415V/3/50 | 220~240/1/50 | 380~415V/3/50 | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 2.92 ~ 9.10 | 4.10 -12.10 | 4.10 -12.10 | 4.30 ~ 15.20 | 4.30 ~ 15.20 | 7.24 ~ 21.90 | 7.24 ~ 21.90 |
| Power Input | kW | 0.61 ~ 2.11 | 0.61 ~ 2.11 | 0.79 -2.85 | 0.87 ~ 3.73 | 0.87 ~ 3.73 | 1.50 ~ 5.88 | 1.50 ~ 5.88 | |
| Current Input | A | 2.80 ~ 9.25 | 2.80 ~ 9.25 | 3.45-13.04 | 4.02 ~ 16.38 | 1.78 ~ 6.04 | 6.86 ~ 30.25 | 2.82 ~ 9.16 | |
| COP | W/W | 4.31 ~ 5.66 | 4.31 ~ 5.66 | 4.24 - 5.57 | 4.07 ~ 5.57 | 4.07 ~ 5.57 | 3.82 ~ 5.59 | 3.82 ~ 5.59 | |
| Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 2.99 ~ 8.16 | 2.99~8.16 | 4.05-12.15 | 4.25 ~ 14.55 | 4.25 ~ 14.55 | 6.36 ~ 19.45 | 6.36 ~ 19.45 |
| Power Input | kW | 1.03 ~ 2.92 | 1.03~2.92 | 1.38-4.06 | 1.45 ~ 4.28 | 1.45 ~ 4.28 | 2.15 ~ 6.85 | 2.15 ~ 6.85 | |
| Current Input | A | 4.57 ~ 12.79 | 4.57~12.79 | 5.73-17.70 | 6.71 ~ 18.80 | 2.84 ~ 6.78 | 9.84 ~ 30.12 | 9.84 ~ 30.12 | |
| COP | W/W | 2.79 ~ 3.46 | 2.79 ~ 3.46 | 2.99 - 3.45 | 2.83 ~ 3.45 | 2.83 ~ 3.45 | 2.84 ~ 3.57 | 2.84 ~ 3.57 | |
| Nominal Heating (Max) (A357/24℃,W12/7℃) | Heating Capacity | kW | 1.38 ~ 5.70 | 1.38~5.70 | 3.65-8.59 | 3.65 ~ 11.04 | 3.65 ~ 11.04 | 4.55 ~ 17.20 | 4.55 ~ 17.20 |
| Power Input | kW | 0.67 ~ 2.44 | 0.67~2.44 | 1.12-3.31 | 1.12~3.97 | 1.12 ~ 3.97 | 1.85 ~ 7.31 | 1.85 ~ 7.31 | |
| Current Input | A | 3.06 ~ 10.27 | 3.06~10.27 | 5.18-14.47 | 5.18~17.44 | 1.97 ~ 6.30 | 8.47 ~ 32.1 | 2.99 ~ 11.26 | |
| ERP Level（Outlet water temp. at 35℃） | / | A+++ | |||||||
| Rated Input Power | kW | 3.5 | 3.5 | 5.40 | 5.85 | 5.85 | 7.5 | 10.5 | |
| Rated Input Current | A | 15 | 15 | 25 | 25 | 10 | 35 | 17 | |
| Refrigerant Type / Charge / GWP | ... / kg | R290 / 0.55 / 3 | R290 / 1.05 / 3 | R290 / 1.05 /3 | R290 / 1.05 / 3 | R290 / 1.05 / 3 | R290 / 1.4 / 3 | R290 / 1.4 / 3 | |
| Rated water flow | m³/h | 1 | 1.4 | 1.4 | 2.06 | 2.06 | 3.1 | 3.1 | |
| Fan quantity | / | 1 | |||||||
| Fan motor type | / | DC inverter | |||||||
| Compressor | / | DC inverter | |||||||
| Circulating pump | / | Inverter type / Built ~ in | |||||||
| IP Class | / | IPX4 | |||||||
| Sound pressure at 1m distance | dB(A) | 46 | 43 | 43 | 53 | 54 | 56 | 56 | |
| Max. outlet water Temp. | °C | 75 | |||||||
| Water Piping Connections | inch | G1 | G1 | G1 | G1 | G1 | G1 ~ 1 / 4 | G1 ~ 1 / 4 | |
| Water Pressure Drop | kPa | 20 | 20 | 20 | 20 | 20 | 50 | 50 | |
| Operating temperature range (Heating mode) | °C | ~ 25~45 | |||||||
| Operating temperature range (Cooing mode) | °C | 16~45 | |||||||
| Unpacked Dimensions ( L×D×H ) | mm | 1187*418*805 | 1287*448*904 | 1287*448*904 | 1287*448*904 | 1287*448*904 | 1187*488*1456 | 1187*488*1456 | |
| Packed Dimensions ( L×D×H ) | mm | 1217*463*920 | 1317*493*1020 | 1317*493*1020 | 1317*493*1020 | 1317*493*1020 | 1217*538*1570 | 1217*538*1570 | |
| UnPacked Weight | kg | 110 | 134 | 134 | 134 | 134 | 195 | 195 | |
| Packed Weight | kg | 122 | 146 | 146 | 146 | 146 | 208 | 208 | |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
