R32 Refrigerant
Solareast's active commitment to innovation and R&D has resulted in the development of the three-in-one R32 air-to-water heat pump series. This series can not only meet the demand of heating and cooling, but also provide domestic hot water at the same time, which brings great convenience to users and makes people's life more comfortable and convenient.
Why we choose R32 refrigerant？
① Energy efficiency:R32 as a refrigerant has many advantages. It has a higher heat transfer coefficient than other refrigerants, which means it can transfer heat more efficiently under the same conditions. As a result, systems utilizing R32 are able to increase efficiency and reduce energy loss, thereby lowering overall energy consumption and demonstrating superior performance and energy savings.
② Lower environmental impact:R32 has a much better environmental profile than many other refrigerants. It has a significantly lower Global Warming Potential (GWP), which means that its impact on global warming is relatively small. By using R32, it is possible to minimize greenhouse gas emissions while maintaining system performance, making a positive contribution to protecting the environment and combating climate change.
③More safety:The flammability of R32 is low compared to other refrigerants. This characteristic makes it possible to greatly reduce the risk of safety incidents caused by flammability in heat pump applications, significantly improving the safety of heat pump system operation. This also gives people more peace of mind in the process of use, and also provides a more reliable guarantee for the wide application of heat pump technology.
④ Compact design:R32 refrigerant has the unique advantage of enabling the design of heat pump units to achieve a more compact structure, which makes the unit smaller in size and lighter in weight. This feature makes it ideal for installations where space is limited, and can fully meet the special needs of such environments, providing users with a more convenient and efficient use of the experience.
⑤ Cost-effectiveness:R32 as a refrigerant is very easily available in the market and the procurement process is very convenient. At the same time, it is relatively low cost and affordable. Because of this, the use of R32 heat pumps is not only practical to meet the needs of people for heating and cooling regulation, but also very affordable, can save users a lot of money, is a very cost-effective choice.
Efficiency A+++ Energy Level
The R32 all-in-one heat pump has a modern design that perfectly blends technology and aesthetics. It meets the stringent requirements for efficiency, stability and silent operation with outstanding performance. At the same time, the use of environmentally friendly R32 refrigerant and advanced inverter technology has resulted in the highest possible A+++ Energy Label rating at an outlet temperature of 55°C. The pump has been designed to meet the needs of a wide range of customers. As a result, users can enjoy the comfort of optimal performance while significantly reducing energy costs, a win-win situation for both energy savings and efficiency.
Consistent Functioning At -25°C
The R32 monoblock heat pump is an extremely reliable and environmentally friendly option. It skillfully combines the advantages of R32 refrigerant with advanced inverter technology to deliver powerful performance. Even in extremely cold climates (temperatures ≥ -25 degrees), it is able to stabilize efficient temperature control and hot water production, providing warmth and comfort to users. Not only that, it is equipped with an intelligent defrosting system is a major highlight, which ensures that it maintains stable and effective performance at all times of the year, providing users with an uninterrupted quality experience, fully demonstrating its excellent quality and technical strength.
Noise Control,No Disturbances
The monoblock heat pump R32 has undergone a series of rigorous tests and careful optimization. In terms of noise reduction, it adopts a variety of advanced technologies, such as full DC technology with stepless speed regulation of the compressor realizing 1Hz frequency adjustment, which effectively reduces the operating noise. Meanwhile, the use of stiffer ABS blades provides excellent wind resistance and further reduces noise generation.Solareast always puts customers' needs first and is committed to creating an ultra-quiet and comfortable operating environment for its customers, so that they can enjoy peace of mind and tranquility to the fullest.
Cut Costs, Conserve Energy
The R32 air-to-water heat pump range has been designed to deliver superior energy efficiency in heating and domestic hot water production. These state-of-the-art heat pumps cleverly utilize ambient air and efficiently transfer the heat contained within to the water system, resulting in significantly reduced energy consumption and significant cost savings for the user. By choosing one of our R32 air-to-water heat pumps, you're not only doing your part to help the environment, you're also enjoying an environmentally friendly and cost-effective heating solution that will make your life more comfortable and convenient, as well as greener and more sustainable.

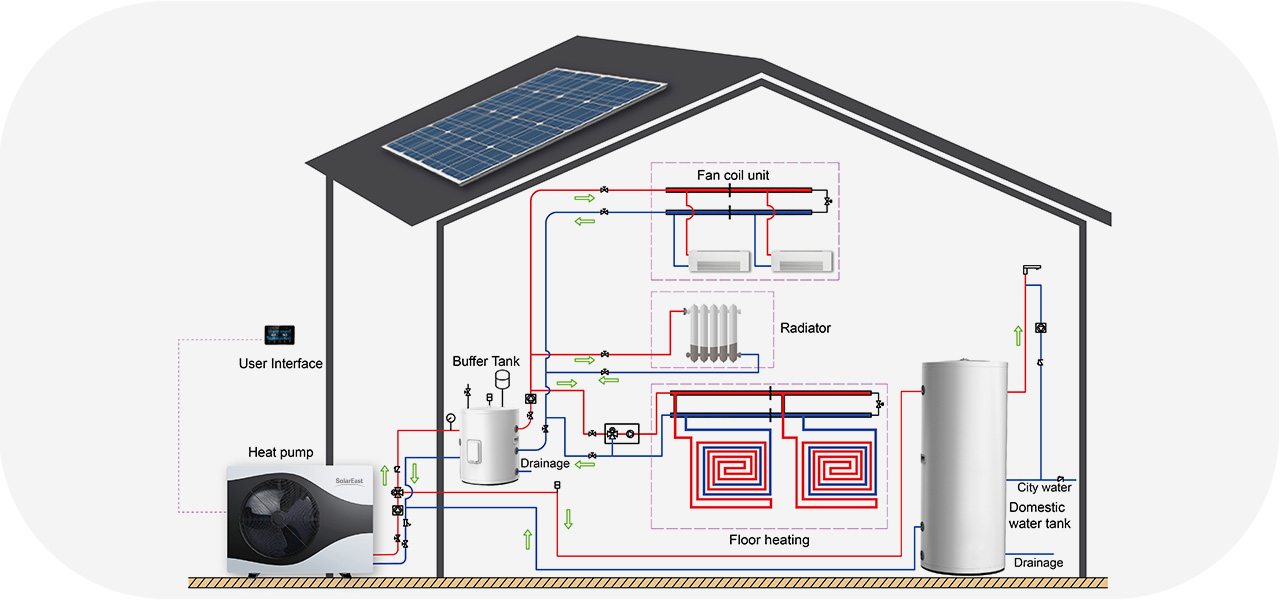

Monoblock heat pump R32 Installation Wiring Diagram
Certificates
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready

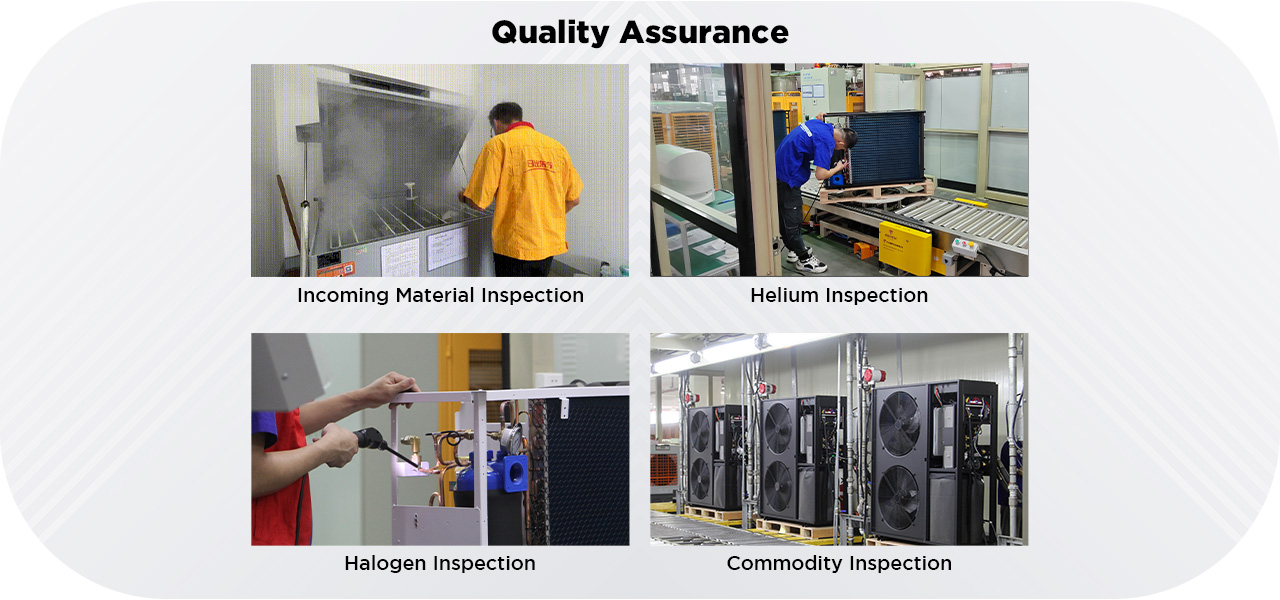

Quality Assurance
Solareast adheres to stringent quality control measures across every stage of production, from design to final assembly. Each unit undergoes thorough testing to ensure optimal performance, energy efficiency, and environmental compliance. With a commitment to delivering excellence, Solareast heat pumps are built to provide long-term value and consistent reliability, meeting the highest standards for modern heating and cooling solutions.
Solareast Overseas Product Showroom
To support global expansion, Solareast has established a 1200-square-meter overseas showroom featuring heat pumps, water tanks, solar solutions, and other innovative energy products. This space, which gained significant attention at the Canton Fair, allows clients to explore Solareast's cutting-edge, eco-friendly technologies firsthand. The showroom underscores the company's commitment to sustainability and high-performance solutions, fostering stronger relationships with international partners.
FAQ
1. What makes R32 refrigerant environmentally friendly?
R32 refrigerant is highly regarded for its eco-friendly profile. It has a significantly lower Global Warming Potential (GWP) compared to other refrigerants, which means it has a minimal impact on global warming. This characteristic makes R32 a sustainable choice for heat pump systems, as it reduces greenhouse gas emissions while still providing optimal performance. Its low GWP contributes to reducing environmental pollution, making it a better option for users committed to minimizing their carbon footprint. Additionally, R32’s energy-efficient properties further reduce overall environmental impact by lowering energy consumption.
2. How does the R32 monoblock heat pump perform in cold climates?
The R32 monoblock heat pump is designed to perform effectively even in extremely cold climates, with reliable heating and hot water production at temperatures as low as -25°C. This is achieved through the combination of R32 refrigerant and advanced inverter technology, which stabilizes temperature control and ensures efficient operation. Additionally, the heat pump features an intelligent defrosting system that helps maintain optimal performance year-round, preventing ice buildup and ensuring continuous operation. Whether in freezing temperatures or mild weather, the R32 monoblock heat pump delivers reliable comfort and efficiency.
3. How does the R32 heat pump reduce energy costs?
The R32 air-to-water heat pump is specifically engineered to deliver superior energy efficiency. It extracts heat from ambient air and transfers it to the water system, significantly reducing energy consumption compared to traditional heating methods. By utilizing R32 refrigerant, which is highly efficient, and advanced inverter technology, these heat pumps reduce electricity usage and operating costs. Additionally, the heat pumps are equipped with features like quiet operation and intelligent controls that further optimize energy use. By choosing an R32 heat pump, users can enjoy reduced energy bills and a more sustainable, cost-effective heating solution.
R32 Refrigerant
Solareast's active commitment to innovation and R&D has resulted in the development of the three-in-one R32 air-to-water heat pump series. This series can not only meet the demand of heating and cooling, but also provide domestic hot water at the same time, which brings great convenience to users and makes people's life more comfortable and convenient.
Why we choose R32 refrigerant？
① Energy efficiency:R32 as a refrigerant has many advantages. It has a higher heat transfer coefficient than other refrigerants, which means it can transfer heat more efficiently under the same conditions. As a result, systems utilizing R32 are able to increase efficiency and reduce energy loss, thereby lowering overall energy consumption and demonstrating superior performance and energy savings.
② Lower environmental impact:R32 has a much better environmental profile than many other refrigerants. It has a significantly lower Global Warming Potential (GWP), which means that its impact on global warming is relatively small. By using R32, it is possible to minimize greenhouse gas emissions while maintaining system performance, making a positive contribution to protecting the environment and combating climate change.
③More safety:The flammability of R32 is low compared to other refrigerants. This characteristic makes it possible to greatly reduce the risk of safety incidents caused by flammability in heat pump applications, significantly improving the safety of heat pump system operation. This also gives people more peace of mind in the process of use, and also provides a more reliable guarantee for the wide application of heat pump technology.
④ Compact design:R32 refrigerant has the unique advantage of enabling the design of heat pump units to achieve a more compact structure, which makes the unit smaller in size and lighter in weight. This feature makes it ideal for installations where space is limited, and can fully meet the special needs of such environments, providing users with a more convenient and efficient use of the experience.
⑤ Cost-effectiveness:R32 as a refrigerant is very easily available in the market and the procurement process is very convenient. At the same time, it is relatively low cost and affordable. Because of this, the use of R32 heat pumps is not only practical to meet the needs of people for heating and cooling regulation, but also very affordable, can save users a lot of money, is a very cost-effective choice.
Efficiency A+++ Energy Level
The R32 all-in-one heat pump has a modern design that perfectly blends technology and aesthetics. It meets the stringent requirements for efficiency, stability and silent operation with outstanding performance. At the same time, the use of environmentally friendly R32 refrigerant and advanced inverter technology has resulted in the highest possible A+++ Energy Label rating at an outlet temperature of 55°C. The pump has been designed to meet the needs of a wide range of customers. As a result, users can enjoy the comfort of optimal performance while significantly reducing energy costs, a win-win situation for both energy savings and efficiency.
Consistent Functioning At -25°C
The R32 monoblock heat pump is an extremely reliable and environmentally friendly option. It skillfully combines the advantages of R32 refrigerant with advanced inverter technology to deliver powerful performance. Even in extremely cold climates (temperatures ≥ -25 degrees), it is able to stabilize efficient temperature control and hot water production, providing warmth and comfort to users. Not only that, it is equipped with an intelligent defrosting system is a major highlight, which ensures that it maintains stable and effective performance at all times of the year, providing users with an uninterrupted quality experience, fully demonstrating its excellent quality and technical strength.
Noise Control,No Disturbances
The monoblock heat pump R32 has undergone a series of rigorous tests and careful optimization. In terms of noise reduction, it adopts a variety of advanced technologies, such as full DC technology with stepless speed regulation of the compressor realizing 1Hz frequency adjustment, which effectively reduces the operating noise. Meanwhile, the use of stiffer ABS blades provides excellent wind resistance and further reduces noise generation.Solareast always puts customers' needs first and is committed to creating an ultra-quiet and comfortable operating environment for its customers, so that they can enjoy peace of mind and tranquility to the fullest.
Cut Costs, Conserve Energy
The R32 air-to-water heat pump range has been designed to deliver superior energy efficiency in heating and domestic hot water production. These state-of-the-art heat pumps cleverly utilize ambient air and efficiently transfer the heat contained within to the water system, resulting in significantly reduced energy consumption and significant cost savings for the user. By choosing one of our R32 air-to-water heat pumps, you're not only doing your part to help the environment, you're also enjoying an environmentally friendly and cost-effective heating solution that will make your life more comfortable and convenient, as well as greener and more sustainable.
Monoblock heat pump R32 Installation Wiring Diagram
Certificates
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready
Quality Assurance
Solareast adheres to stringent quality control measures across every stage of production, from design to final assembly. Each unit undergoes thorough testing to ensure optimal performance, energy efficiency, and environmental compliance. With a commitment to delivering excellence, Solareast heat pumps are built to provide long-term value and consistent reliability, meeting the highest standards for modern heating and cooling solutions.
Solareast Overseas Product Showroom
To support global expansion, Solareast has established a 1200-square-meter overseas showroom featuring heat pumps, water tanks, solar solutions, and other innovative energy products. This space, which gained significant attention at the Canton Fair, allows clients to explore Solareast's cutting-edge, eco-friendly technologies firsthand. The showroom underscores the company's commitment to sustainability and high-performance solutions, fostering stronger relationships with international partners.
FAQ
1. What makes R32 refrigerant environmentally friendly?
R32 refrigerant is highly regarded for its eco-friendly profile. It has a significantly lower Global Warming Potential (GWP) compared to other refrigerants, which means it has a minimal impact on global warming. This characteristic makes R32 a sustainable choice for heat pump systems, as it reduces greenhouse gas emissions while still providing optimal performance. Its low GWP contributes to reducing environmental pollution, making it a better option for users committed to minimizing their carbon footprint. Additionally, R32’s energy-efficient properties further reduce overall environmental impact by lowering energy consumption.
2. How does the R32 monoblock heat pump perform in cold climates?
The R32 monoblock heat pump is designed to perform effectively even in extremely cold climates, with reliable heating and hot water production at temperatures as low as -25°C. This is achieved through the combination of R32 refrigerant and advanced inverter technology, which stabilizes temperature control and ensures efficient operation. Additionally, the heat pump features an intelligent defrosting system that helps maintain optimal performance year-round, preventing ice buildup and ensuring continuous operation. Whether in freezing temperatures or mild weather, the R32 monoblock heat pump delivers reliable comfort and efficiency.
3. How does the R32 heat pump reduce energy costs?
The R32 air-to-water heat pump is specifically engineered to deliver superior energy efficiency. It extracts heat from ambient air and transfers it to the water system, significantly reducing energy consumption compared to traditional heating methods. By utilizing R32 refrigerant, which is highly efficient, and advanced inverter technology, these heat pumps reduce electricity usage and operating costs. Additionally, the heat pumps are equipped with features like quiet operation and intelligent controls that further optimize energy use. By choosing an R32 heat pump, users can enjoy reduced energy bills and a more sustainable, cost-effective heating solution.
| Model | BLN-006TB1 | BLN-010TB1 | BLN-010TB3 | BLN-014TB1 | BLN-014TB3 | BLN-018TB1 | BLN-018TB3 | BLN-024TB3 | ||
| Power Supply | V/Ph/Hz | 220~240V/1/50 | 220~240V/1/50 | 380~415/3/50 | 220~240V/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | 380~415/3/50 | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 2.50 ~ 8.30 | 4.20-12.20 | 4.20 ~ 12.20 | 5.30 ~ 16.50 | 5.30-16.60 | 6.20-20.50 | 6.20 ~ 20.50 | 6.50-26.10 |
| Input Power | A | 2.53 ~ 8.52 | 3.82 ~ 12.77 | 1.46 ~ 4.89 | 5.10 ~ 18.41 | 1.86 ~ 6.70 | 1.36 ~ 5.28 | 1.36 ~ 5.28 | 1.78 ~ 6.45 | |
| Current Input | kW | 0.57 ~ 1.92 | 0.86 ~ 2.88 | 0.86 ~ 2.88 | 1.15 ~ 4.15 | 1.15 ~ 4.15 | 6.10 ~ 23.67 | 2.31 ~ 8.96 | 2.87 ~ 10.35 | |
| COP | W/W | 4.32 ~ 5.86 | 4.23 ~ 5.39 | 4.23 ~ 5.39 | 3.97 ~ 5.43 | 3.97 ~ 5.43 | 3.88 ~ 5.21 | 3.88 ~ 5.21 | 4.04 ~ 5.43 | |
Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 2.30 ~ 7.62 | 3.85 ~ 11.20 | 3.85 ~ 11.20 | 4.90 ~ 15.10 | 4.90 ~ 15.10 | 6.30 ~ 19.90 | 6.30 ~ 19.90 | 6.90 ~ 26.10 |
| Input Power | kW | 0.75 ~ 2.61 | 1.13 ~ 3.75 | 1.13 ~ 3.75 | 1.65 ~ 5.25 | 1.65 ~ 5.25 | 1.65 ~ 6.82 | 1.65 ~ 6.82 | 1.95 ~ 8.55 | |
| Current Input | A | 3.32 ~ 11.58 | 5.01 ~ 16.6 | 1.92 ~ 6.37 | 7.32 ~ 23.30 | 1.67 ~ 8.47 | 7.40 ~ 30.56 | 2.80 ~ 11.58 | 3.15 ~ 13.80 | |
| COP | W/W | 2.92 ~ 3.33 | 2.99 ~ 3.46 | 2.99 ~ 3.46 | 2.87 ~ 3.38 | 2.87 ~ 3.38 | 2.91 ~ 3.34 | 2.91 ~ 3.34 | 3.05 ~ 3.42 | |
| Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | kW | 1.80 ~ 7.10 | 2.60 ~ 10.30 | 2.60 ~ 10.30 | 4.50 ~ 13.50 | 4.50 ~ 13.50 | 5.50 ~ 17.50 | 5.50 ~ 17.50 | 5.20 ~ 21.30 |
| Power Input | kW | 0.61 ~ 2.43 | 0.91 ~ 3.65 | 0.91 ~ 3.65 | 1.45 ~ 4.85 | 1.45 ~ 4.85 | 1.65 ~ 6.25 | 1.65 ~ 6.25 | 1.95 ~ 8.20 | |
| Current Input | A | 2.71 ~ 10.78 | 4.03 ~ 16.19 | 1.55 ~ 6.20 | 6.43 ~ 21.52 | 2.34 ~ 7.82 | 7.40 ~ 28.02 | 2.80 ~ 10.61 | 3.15 ~ 13.23 | |
| EER | W/W | 3.04 | 3 | 3 | 2.87 | 2.87 | 2.96 | 2.96 | 2.92 | |
ERP Level（Outlet water temp. at 35℃） | / | A+++ | ||||||||
| ERP Level（Outlet water temp. at 55℃） | / | A++ | ||||||||
| Rated Input Power | kW | 2.71 | 3.83 | 3.83 | 6.2 | 6.2 | 7.50 | 7.50 | 10.0 | |
| Rated Input Current | A | 12 | 17 | 6.5 | 27.5 | 10.5 | 35.0 | 313.0 | 17.0 | |
| Refrigerant Type / Charge / GWP | .../kg | R32/1.25/675 | R32/1.8/675 | R32/1.8/675 | R32/2.8/675 | R32/2.8/675 | R32/3.5/675 | R32/3.5/675 | R32/3.5/675 | |
| Rated water flow | m³/h | 1.1 | 1.75 | 1.75 | 2.52 | R32/2.8/675 | 3.20 | 3.20 | 4.12 | |
| Fan quantity | / | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Fan motor type | / | DC inverter | ||||||||
| Compressor | / | Panasonic / DC inverter / Rotary / EVI | ||||||||
| Circulating pump | / | Inverter type / Built-in | ||||||||
| IP Class | / | IPX4 | ||||||||
| Sound pressure at 1m distance | dB(A) | 49 | 52 | 52 | 53 | 54 | 56 | 55 | 58 | |
| Max outlet water temperature | ℃ | 60 | ||||||||
| Water piping connections | inch | G1 | G1 | G1 | G1-1/4 | G1-1/4 | G1-1/2 | G1-1/2 | G1-1/2 | |
| Pressure drop at rating water flow | kPa | 25 | 27 | 27 | 30 | 30 | 32 | 32 | 35 | |
| Operating temperature range (Heating mode) | ℃ | -25~45 | ||||||||
| Operating temperature range (Cooing mode) | ℃ | 16~45 | ||||||||
| Unpacked Dimensions ( L×D×H ) | mm | 1100*445*850 | 1100*445*850 | 1100*445*850 | 1100*480*850 | 1100*480*850 | 1110*445*1450 | 1110*445*1450 | 1110*445*1450 | |
| Packed Dimensions ( L×D×H ) | mm | 1160*530*1010 | 1100*445*850 | 1100*445*850 | 1160*530*1010 | 1160*530*1010 | 1170*530*1610 | 1170*530*1610 | 1170*530*1610 | |
| UnPacked Weight | kg | 102 | 107 | 107 | 124 | 124 | 151 | 151 | 160 | |
| Packed Weight | kg | 114 | 119 | 119 | 136 | 136 | 168 | 168 | 177 | |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
