This R32 pool heat pump application in Spain used two 9kW R32 swimming pool heat pumps for an 80m³ outdoor pool near Barcelona. The system was designed for seasonal pool heating, stable water temperature, and flexible operation under Mediterranean outdoor conditions.
Table of Contents
Item | Project Information |
Location | Barcelona, Spain |
Pool Type | Outdoor swimming pool |
Pool Volume | 80m³ |
Heat Pump Configuration | 2 × 9kW R32 pool heat pumps |
Total Nominal Heating Capacity | 18kW |
Refrigerant | R32 |
Application Purpose | Seasonal pool heating and temperature maintenance |
Recommended Use | Villa pool, private pool |
*Table of R32 pool heat pump application in Spain
For an 80m³ outdoor pool, using two 9kW units gives the project more flexibility than relying on a single unit. It allows the system to work in stages.
During the initial heating period, both units can operate together to bring the pool water closer to the target temperature. Once the water temperature becomes stable, one unit can handle part-load operation while the second unit starts only when extra heating is needed.
This setup brings several practical benefits:
More flexible capacity control for changing outdoor conditions
Better load sharing between two units
Easier maintenance compared with depending on a single heat source
Lower risk of complete heating interruption if one unit needs service
More suitable installation layout for the limited outdoor equipment space
For pool builders and distributors, this is an important point. Many outdoor pool projects do not need a large commercial unit. They need a balanced system that is easier to install, explain, and maintain.
*R32 pool heat pump application in Spain
Raising this volume of water by 1°C requires around 93kWh of thermal energy, before considering heat loss.
In ideal conditions, this means the system would need about 5.2 hours to raise the pool water by 1°C. In real outdoor conditions, the heating time may be longer because of wind, evaporation, night-time temperature drop, and uncovered water surface.
This is why the system should not be judged by “kW and pool volume” alone. For an outdoor swimming pool heat pump in Barcelona, the following factors should be checked before final sizing:
Target water temperature
Expected swimming season
Whether a pool cover is used at night
Local wind exposure
Pool surface area
Distance between pool and heat pump
Circulation pump flow rate
Daily operating hours
For this project, the 2 × 9kW configuration was suitable for seasonal pool heating and temperature maintenance. If the owner expects winter swimming or fast heating from very low water temperatures, the sizing should be reviewed again.
Planning an outdoor pool heating application in Spain?
Share your pool volume, target water temperature, swimming season, and installation space. SolarEast can help match a suitable pool heat pump configuration before quotation.
*R32 pool heat pump application in Spain

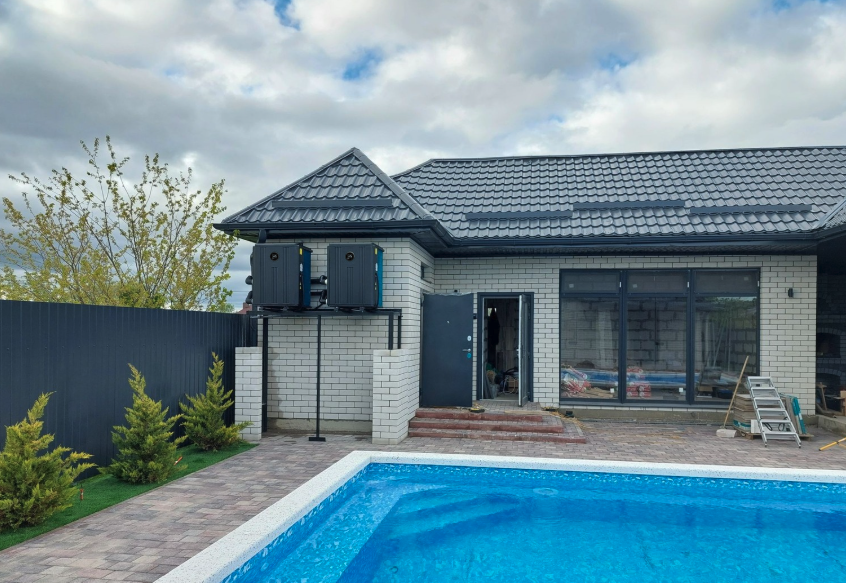

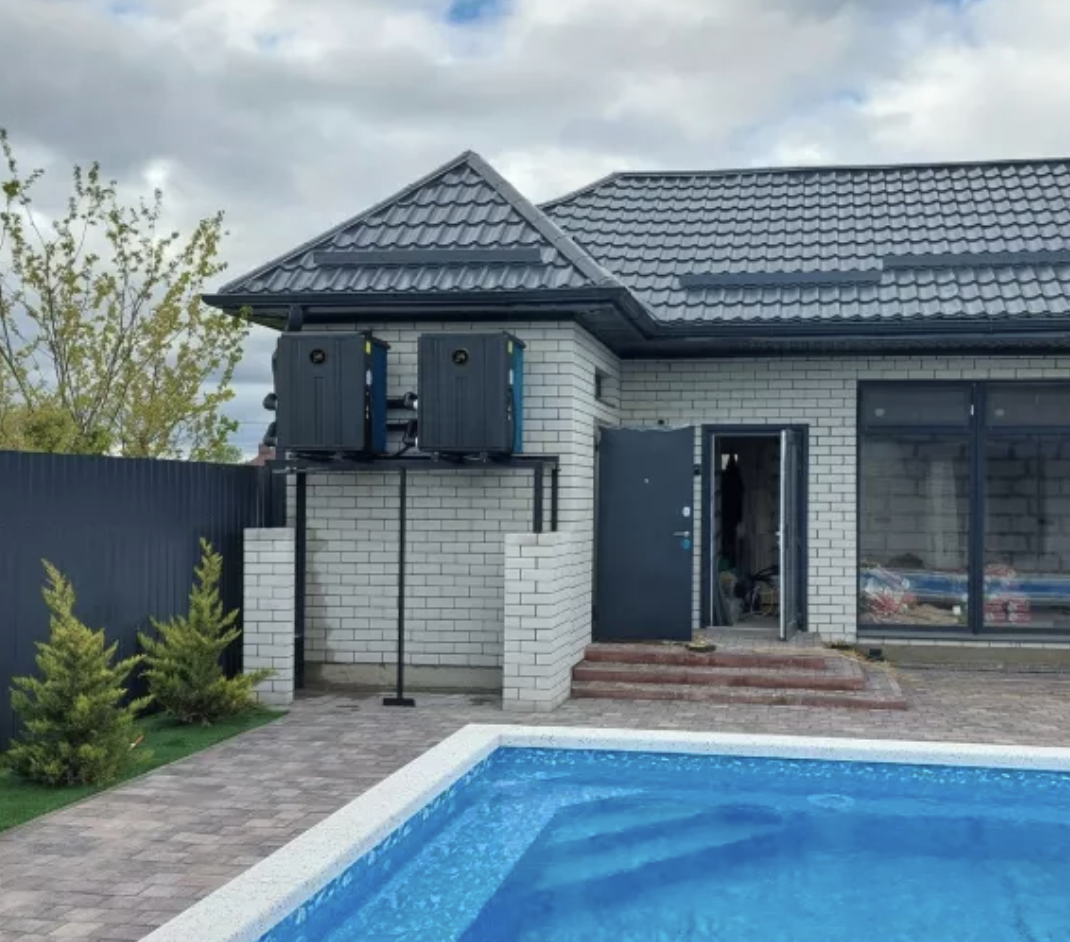

The two R32 heat pumps were installed in parallel, allowing both units to share the heating load. This configuration is suitable for outdoor pools where demand changes between daytime and night-time operation.
The recommended system logic is:
Initial heating stage
Both heat pumps operate together when the pool water temperature is far below the set point.
Temperature maintenance stage
One unit runs more often to maintain the target temperature. The second unit supports when demand increases.
High-demand stage
Both units operate when outdoor air temperature drops, when the pool is used frequently, or when heat loss is higher than usual.
Energy-saving operation
A pool cover is recommended during night-time or unused periods to reduce heat loss and shorten operating hours.
This design keeps the solution simple. It also helps installers explain the system clearly to end users.
In this project, the R32 pool heat pump was suitable because the pool required stable seasonal heating rather than heavy-duty year-round operation. The equipment also needed to remain compact enough for outdoor installation near the pool area.
For European buyers, R32 is not only a product specification. It is also a market communication point. Compared with older refrigerant options, R32 is easier to explain as a more modern refrigerant choice for pool heating equipment. However, importers and brand owners should still check local refrigerant regulations, installation requirements, and future market policy before placing large-volume orders.

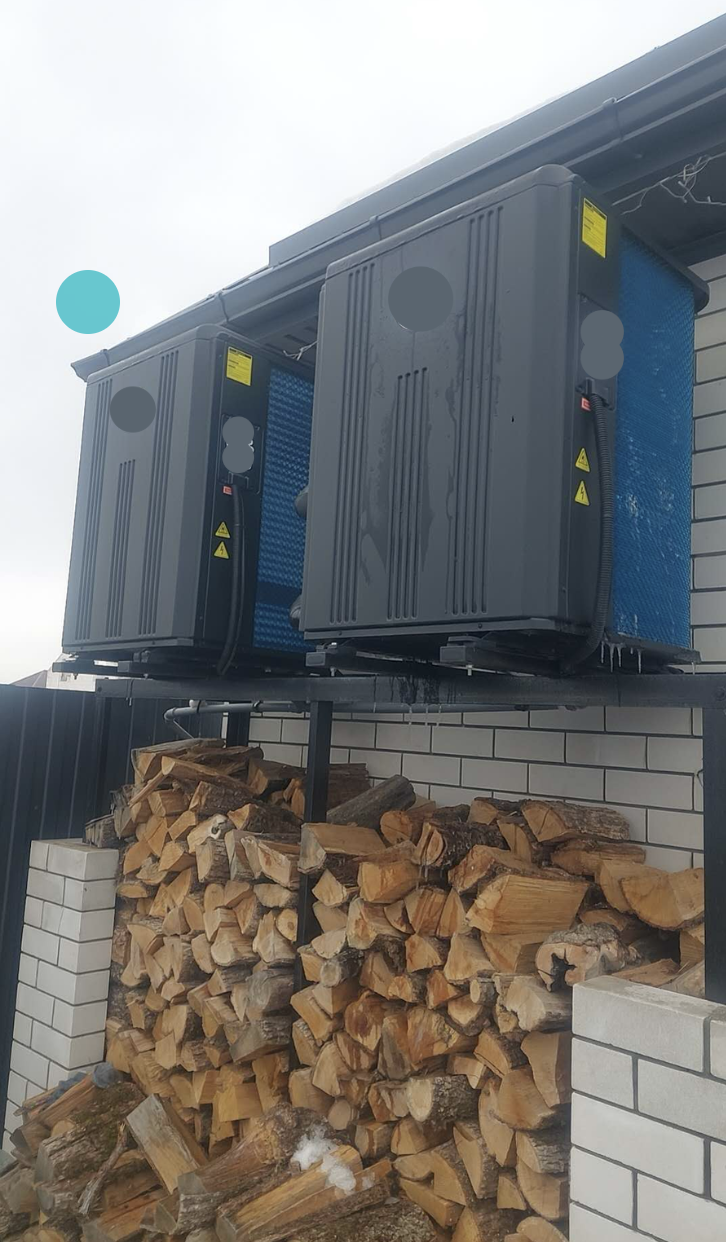

Outdoor pool heat pumps need enough airflow. The unit should not be placed in a closed corner or directly against a wall. Poor airflow can reduce heating performance and increase operating noise.
For this Barcelona project, the installation should follow several basic principles:
Keep enough clearance around the air inlet and outlet
Avoid blowing cold discharge air toward seating areas
Use anti-vibration supports if the unit is installed near a leisure space
Install a bypass valve for easier flow adjustment
Make sure the water flow matches the heat pump requirement
Use proper drainage to avoid water accumulation around the unit
Check electrical protection according to local installation rules
Keep regular water treatment to protect the titanium heat exchanger
These details may look small, but they affect real user experience. A well-sized heat pump can still perform poorly if airflow, water flow, or installation position is wrong.
This R32 pool heat pump application in Spain shows a common demand in Mediterranean markets: outdoor pools that need practical heating support without moving directly to large commercial systems.
For pool builders, this type of solution is easier to integrate into villa pools and small hospitality projects. For distributors, it provides a clear selling scenario: an 80m³ outdoor pool, two 9kW units, staged operation, and seasonal comfort.
It is also useful for OEM and private label buyers. Many customers do not only ask for a product catalogue. They want to know whether the heat pump can fit a real pool size, a real climate, and a real installation environment. A project like this helps turn product specifications into a visible application story.
The final system used two 9kW R32 pool heat pumps to support an 80m³ outdoor pool near Barcelona. Instead of relying on one oversized unit, the system used staged operation to match daily heating demand more flexibly.
For the end user, the key value was simple: warmer pool water, better seasonal usability, and easier temperature maintenance. For the installer or distributor, the value was also clear: a practical configuration that can be repeated in similar outdoor pool projects across Spain and other Mediterranean markets.
If you are planning a Spain outdoor pool heating project, the best starting point is not only the pool volume. The right sizing should also include local climate, target water temperature, swimming season, pool cover use, and installation space.
