5KW R290 High Efficiency Inverter Swimming Pool Heat Pump Water Heater



· R290 Eco-friendly Refrigerant

· Battery Detection Function

· SG Ready Function

· Full Inverter Technology

· Reserved RS485 Communication Port

· Quiet Performance

· Linkage Control

· 5-Inch TFT Dispaly

· Graffiti 5G/2.4G Compatible WiFi Module
Availability:



详情图-0806-9


Solareast Heat Pump Ltd. offers a reliable and efficient R290 swimming pool heat pump system



Fully Inverter With R290 Refrigerant

Solareast's BYC range of pool heat pumps offers significant unique advantages. A highlight is the fully inverter technology, which enables extremely precise variable speed control. By precisely adjusting the operating speed, it ensures optimal energy efficiency and performance under all operating conditions, effectively reducing energy consumption and saving operating costs for the user. At the same time, the pool heat pump uses R290 refrigerant, R290 refrigerant has excellent environmental performance, its global warming potential (GWP) is only 3, compared with the traditional refrigerant, greatly reduces the impact on the greenhouse effect, can effectively reduce carbon emissions, and contribute to the protection of the environment.



详情图-015



SG Ready Function

The Solareast BYC range of pool heat pumps features the SG Ready function, which seamlessly integrates with the Smart Grid for improved energy efficiency and control. With this feature, users can precisely optimize the pool's energy consumption based on external signals. By intelligently adjusting the heat pump's mode of operation in response to real-time fluctuations in electricity prices or loads on the grid, costs can be reduced and more sustainable operation achieved. With Solareast's BYC series, you can enjoy your pool while experiencing the benefits of the SG Ready feature to create an efficient, energy-saving and comfortable pool environment.



详情图-016



5-Inch TFT Dispaly

Solareast's BYC series pool heat pumps are uniquely equipped with a 5-inch TFT dispaly. The screen presents an intuitive and user-friendly interface with a high degree of professionalism. It is easy to operate and monitor, with easy access to and precise control over settings and parameters, ensuring a seamless pool operation experience that is both technologically advanced and ergonomically designed.



lQDPKHq7nw-sT2fNAZDNAyCw-yklZsboJyIFhTVdvQSeAQ_800_400

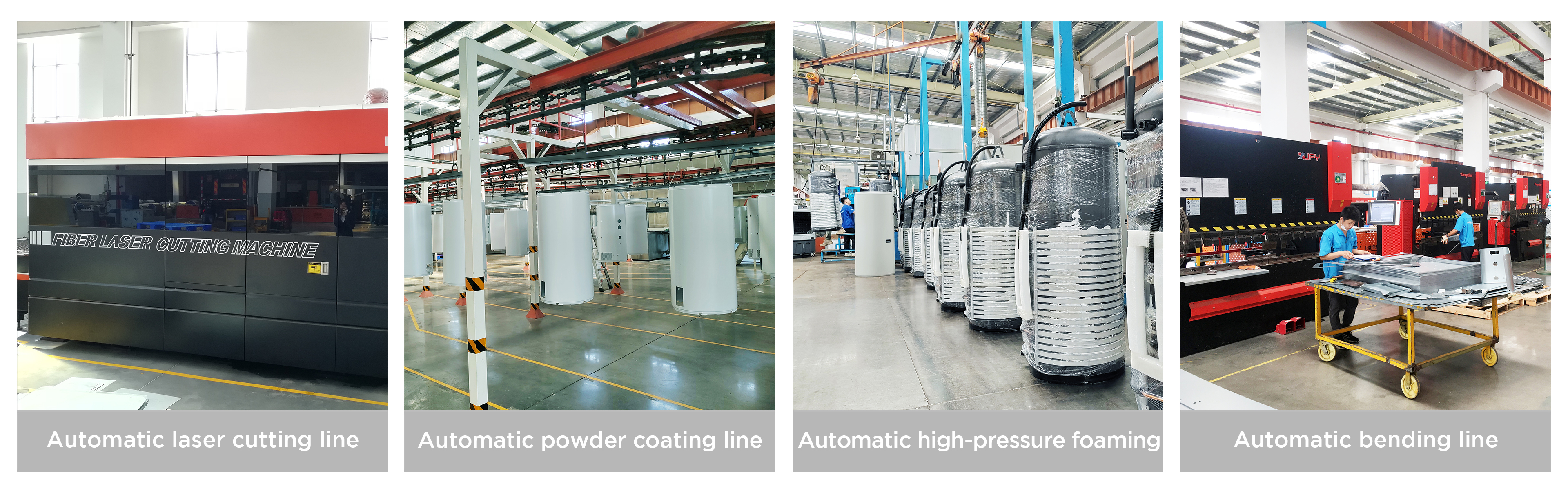

Automatic Equipment

Solareast's factory is equipped with advanced automated equipment. The automatic laser cutting line cuts the material precisely, the automatic powder coating line gives the product a beautiful and durable coating, the automatic high-pressure foaming line ensures good heat preservation, and the automatic bending line realizes precise molding. All these equipments work together to ensure stable product quality and efficiently produce high quality heat pumps to meet the market demand, demonstrating the company's strong manufacturing capabilities.



车间自动流水线

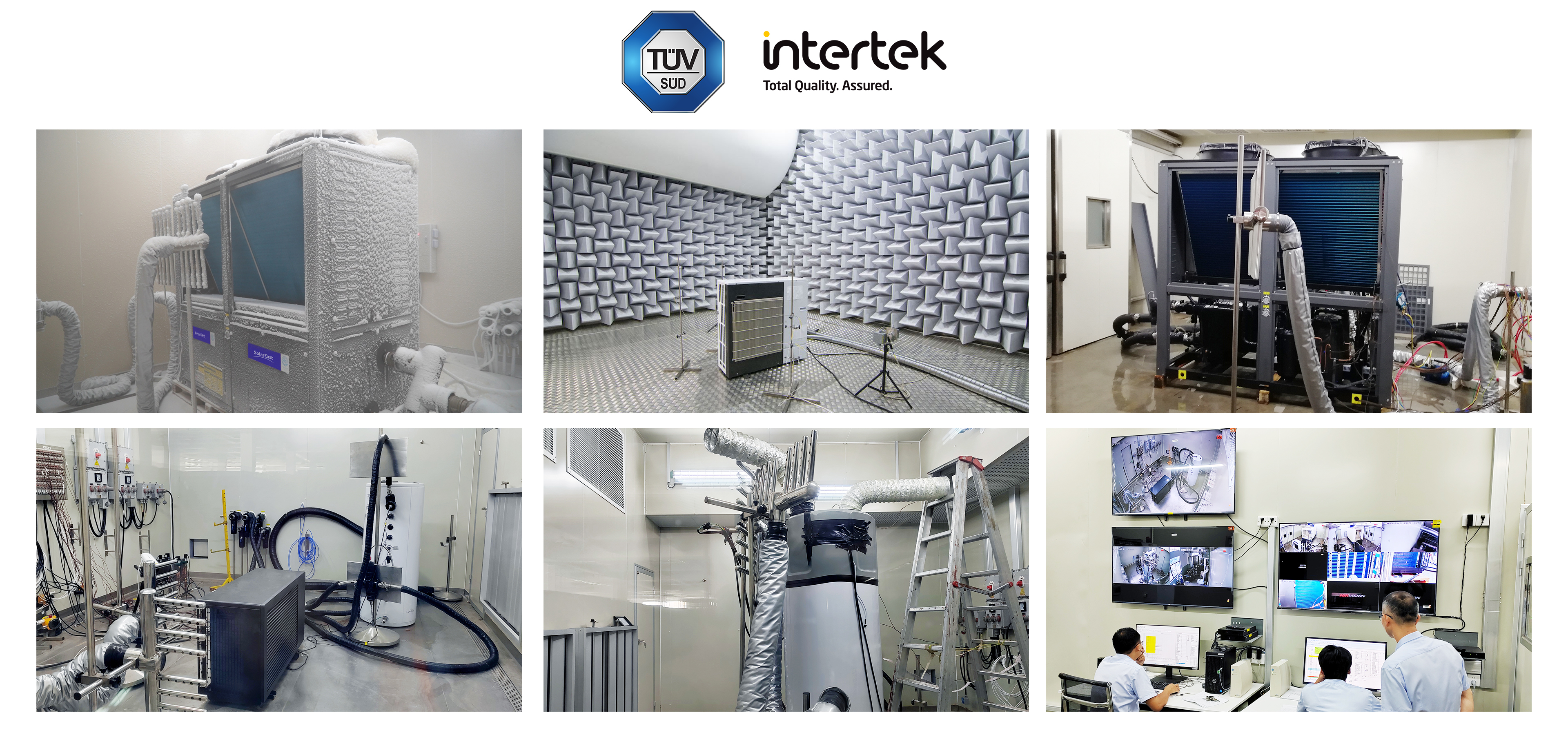

Laboratory

At Soalreast Heat Pump Ltd., we have invested USD 3 million to create an advanced laboratory capable of simulating extreme environmental conditions from -30°C to 52°C, ensuring long-term operational testing. Our facility includes a state-of-the-art data monitoring center and has received certifications from TUV and Intertek, affirming the highest standards of quality and safety. In 2023, we are expanding with the construction of a water drawing testing laboratory and an explosion-proof laboratory to further enhance our testing capabilities.



实验室





Model
BYC-008TJ1
Power Supply
220-240V/1/50Hz
At Air 15℃, Humidity 70%,Water 26℃in,28℃out
Heating capacitykW5.60-2.10
Heating Power InputkW1.15-0.29
COPw/w7.24-4.86
At Air 26℃, Humidity 80%,Water 26℃in,Water Flow Volume 2.36 m³/h
Heating capacitykW7.30-2.75
Heating Power InputkW1.10-0.26
COPw/w10.57-6.63
At Air 35℃, Water 27℃in,Water Flow Volume 2.36 m³/h
Heating capacitykW4.30-2.40
Heating Power InputkW0.85-0.35
EERw/w6.85-5.05
Noise dB(A)50
Power Input Max.kW1.30
Current Input Max.A5.90
Heating Ambient Temperature -15~45
Cooling Ambient Temperature -15~45
Heating Water side operating temperature8~40
Cooling Water side operating temperature28~8
Refrigerant Type/Charge/GWP
R290 /0.33 / 3
CO₂ Equivalent
0.00099t
Operation Pressure(Low Side)MPa1.1
Operation Pressure(High Side)MPa2.8
Maximum Allowable PressureMPa2.8
Electrical Shockproof
I
IP Class
IPX4
Water Piping ConnectionsMM50
Water Pressure Drop MPa30
Water Pressure MaxMPa0.5
Water Flow Ratedm³/h2.36
Air flow Ratedm³/h2000
Unit Dimensions (W/H/D)mm914*634*384
Shipping Dimensions (W/H/D)mm973*785*455
Net Weightkg54

* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
