Heat Pump Defrost Explained

Views: 0

Inquire

facebook sharing button
linkedin sharing button
whatsapp sharing button
twitter sharing button
wechat sharing button
line sharing button
pinterest sharing button
sharethis sharing button


A heat pump defrost system plays a critical role in keeping heat pump efficient during cold weather. But what exactly is a heat pump defrost, and why do heat pumps have dedicated defrost systems or even defrost cycle mechanisms? Before frost builds up and disrupts performance, it’s important to understand why heat pumps frost, how to know when defrost mode is active, and how long the process should last. This blog also addresses common concerns—such as why some units stop defrosting—and offers guidance for businesses looking to ensure reliable operation. From function to fault diagnosis, this complete guide to heat pump defrost covers what professionals need to know.

1. Why Do Heat Pumps Frost Up?

Heat pumps extract heat from the outside air to warm indoor spaces. During this process, the outdoor coil operates at a temperature lower than the ambient air. When moist air comes into contact with the cold coil surface, the moisture condenses. If the coil temperature is below freezing, this condensation turns into frost or ice. This frost accumulation impedes airflow and reduces the system's efficiency.

Several factors contribute to frost formation:

  • Low Ambient Temperatures: Colder air increases the likelihood of the coil temperature dropping below freezing.

  • High Humidity: More moisture in the air means more condensation on the coil.

  • Reduced Airflow: Obstructions or dirty filters can decrease airflow, causing the coil to become colder and promoting frost formation.

2. What Is a Heat Pump Defrost?

A heat pump defrost is the process of removing accumulated frost or ice from the outdoor coil of an air-source heat pump during heating mode. In cold and humid environments, moisture in the air can freeze on the surface of the heat exchanger. Over time, this frost buildup reduces heat transfer efficiency and can lead to increased energy use, poor heating performance, and even long-term damage to system components.

Defrost is not just a feature—it is a critical function that protects the heat pump from inefficiency and mechanical stress. Without defrost, the outdoor coil becomes insulated by ice, which prevents it from absorbing enough heat from the ambient air. As a result, the system struggles to deliver warm air indoors and may experience unnecessary wear.

In professional heat pump applications, especially in colder regions, a reliable defrost function is essential. Whether installed in a residential home or a light commercial setting, heat pumps must be able to remove frost regularly to maintain stable operation. This is why heat pump defrost is considered a core part of performance evaluation when selecting or designing systems for winter use.

2.1 Intelligent defrost components

Component

Function in Defrost Process

  • Four-Way Valve
    (key component)

Reverses refrigerant flow to switch the system from heating to cooling during defrost.
  • Compressor

Provides the pressure and temperature needed to warm the outdoor coil and melt frost.
  • Control Software

Detects frost conditions via sensors and triggers the defrost cycle at the right moment.
  • Temperature Sensors

Monitor coil and ambient conditions to determine if defrost is required.

2.2 Reasons of heat pump must have a defrost function

Heat pumps are designed to extract heat from the outside air—even when it's cold. But when the outdoor coil begins to frost over, the heat exchange process becomes less effective. If the frost is not removed, the system cannot absorb enough heat, leading to higher energy consumption, reduced heating output, and potential system failures.

That’s why modern heat pumps are equipped with defrost systems. Their job is to monitor the condition of the condenser and activate frost removal when necessary. A well-functioning defrost system keeps the unit efficient, prevents ice-related damage, and ensures consistent comfort in low-temperature environments. This functionality plays a key role in ensuring long-term reliability, especially in regions where frost occurs frequently. At SolarEast, all heating heat pumps come standard with built-in defrost systems to maintain stable performance, even in challenging winter conditions.

Without a defrost system, the unit would need frequent manual maintenance or risk breaking down during peak heating demand. In large-scale installations or light commercial scenarios, such issues can mean service delays, customer complaints, and added costs.

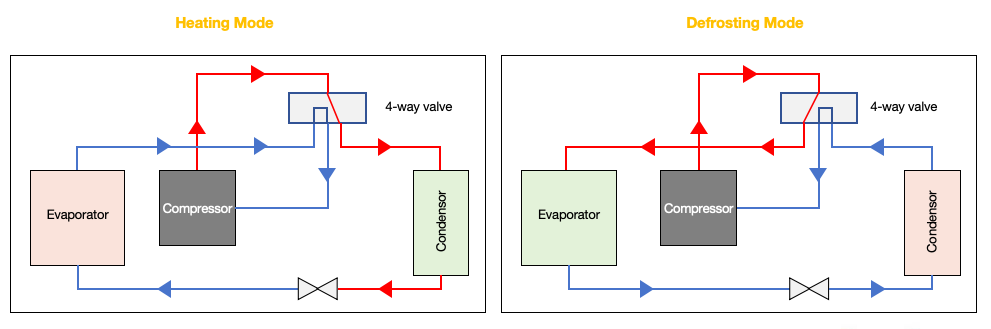

heat pump defrost

* heat pump heating mode vs heat pump deforsting mode

To automate this critical task, heat pumps rely on a control logic known as heat pump defrost cycle—a smart sequence that enables the system to melt frost without user intervention.

2.2.1 Heat Pump Defrost Cycle

Heat pump defrost cycle is the method by which the heat pump removes frost from the outdoor coil. It works by temporarily reversing the system’s operation—sending warm refrigerant to the outdoor coil to melt the frost.

This process is typically controlled by 4-way valve, temperature sensors and pressure switches. When the system detects that frost has reached a certain level, it triggers the defrost cycle automatically. Once the ice is gone, the system switches back to heating mode.

Having a programmed cycle ensures that defrosting happens only when needed, avoiding energy waste or unnecessary interruptions. This automated design reduces the need for manual intervention and helps extend the life of components like compressors and coils.

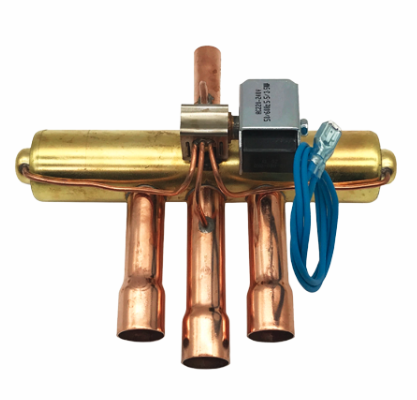

4-way valve

* heat pump 4-way valve

Heat pump defrost cycle is the method by which the heat pump removes frost from the outdoor coil. It works by temporarily reversing the system’s operation—sending warm refrigerant to the outdoor coil to melt the frost.

This process is typically controlled by temperature sensors, timers, or pressure switches. When the system detects that frost has reached a certain level, it triggers the defrost cycle automatically. Once the ice is gone, the system switches back to heating mode.

temperature sensors

* heat pump temperature sensors

Having a programmed cycle ensures that defrosting happens only when needed, avoiding energy waste or unnecessary interruptions. This automated design reduces the need for manual intervention and helps extend the life of components like compressors and coils.

Some advanced systems even use smart defrost algorithms to optimize timing and efficiency. For example, SolarEast heating heat pumps are equipped with intelligent defrost control by default—so users never have to worry about frost-related interruptions in the field.

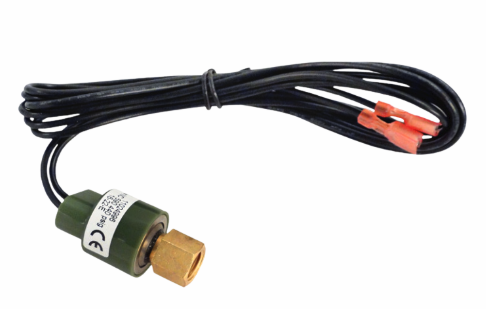

pressure switches

* heat pump pressure switches

Understanding how defrost cycles are managed—whether through basic logic or advanced automation—can help in product selection, integration, and performance tuning.

3. Why Are Heat Pumps Not Defrosting?

When a heat pump stops defrosting, ice builds up on the outdoor coil, reducing heat output and risking shutdown. Two of the most common causes are four-way valve failure and sensor malfunction.


4-way valve

allows the system to reverse refrigerant flow and enter defrost mode. If the valve is stuck or damaged, the unit can't switch to cooling mode to melt the frost.


Temperature sensors

are another frequent issue. If the coil or ambient sensor gives inaccurate readings—due to wiring faults, damage, or calibration drift—the system won’t detect frost and won’t trigger the defrost cycle.

Other possible reasons include low refrigerant, control board errors, or restricted airflow. These faults can lead to frequent ice buildup, especially in cold climates.

Understanding these factors is crucial for maintaining optimal heat pump performance. Regular maintenance and proper installation can mitigate excessive frost buildup.

* The frosting process is similar to what happens when you take a soda bottle out of the fridge. Water droplets form on the surface. In winter, when the air is colder, those droplets can freeze and turn into frost.

Source: Energy Vanguard - What Happens to the Frost on My Heat Pump?

4. How Do You Know If Your Heat Pump Is in Defrost Mode?

When a heat pump enters defrost mode, it temporarily stops heating the indoor space. This shift is part of the system’s built-in response to frost accumulation on the outdoor coil. But how can you tell when your unit is defrosting?

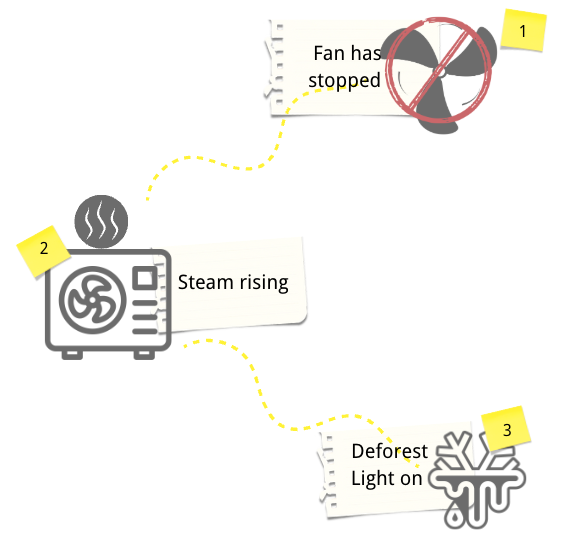

heat pump defrost running

There are a few clear signs.


First, you might notice that the outdoor fan has stopped spinning while the compressor is still running. This is a normal part of the heat pump defrost. Some systems also make a humming or swooshing sound when they reverse the refrigerant flow to warm the outdoor coil.

Second, if you observe steam rising from the outdoor unit, it’s another typical indication of defrost mode. This happens when ice melts quickly from the coil’s surface.

Third, some models display a defrost indicator light or error code, which helps technicians confirm that the defrost function is active.


However, this should be brief. If the system runs too long without producing warm air, it could signal a problem—which we'll address in a later section.

Knowing these signs is essential for maintenance staff and heat pump professionals, especially in colder climates. Properly identifying when a heat pump is defrosting can help prevent unnecessary service calls and ensure the system is operating as designed.

4.1 How Long Should a Heat Pump Defrost Cycle Last?

WechatIMG39667

A typical heat pump defrost cycle lasts between 5 and 15 minutes, depending on the outdoor temperature, coil design, and system controls. Most systems run a defrost cycle approximately every 40 to 60 minutes during low-temperature conditions. These intervals allow the unit to maintain performance while limiting unnecessary energy use.

However, actual performance can vary widely between brands and models.

SolarEast heating heat pumps are equipped with intelligent defrost control, offering fast and reliable defrosting. On average, the defrost cycle completes in just 2 minutes, which is significantly shorter than the industry norm. The system also initiates defrost automatically every 45 minutes at least, balancing efficiency and frost prevention without user intervention.

This level of optimization ensures minimal heating interruption and stable performance in cold weather—critical for residential and light commercial installations. For OEMs and heat pump planners, this kind of defrost efficiency can reduce service demands and improve end-user satisfaction.

If your system defrosts too frequently or not at all, it could signal a deeper issue—something we’ll address in the next section.


5. Need Stable Heat Pump Defrost Performance

Snipaste_2025-05-09_16-41-02


SolarEasts' all equipped with intelligent defrost control

What sets our defrost technology apart is the way it dynamically evaluates environmental conditions. Instead of relying on a fixed timer, the system uses multiple inputs—including ambient temperature, evaporation temperature, and condensation temperature — to decide whether defrosting is necessary. This means the unit only enters defrost mode when truly needed, avoiding unnecessary energy loss.

Our smart defrost algorithm ensures that heating output is minimally impacted during the process. With an average defrost time of just 2 minutes and a cycle frequency of at least 45 minutes, SolarEast systems maintain steady performance even in sub-zero climates.

Whether you're planning large-scale installations or sourcing reliable OEM products, we’re here to support you with technical expertise and proven solutions.


6. Conclusion

A well-functioning heat pump defrost system is essential for maintaining efficient heating in cold, humid environments. This blog has explained what heat pump defrost is and why a controlled defrost cycle is necessary to prevent frost buildup. We've looked at how and why heat pumps frost up, and how users can recognize when defrost mode is active. Finally, we covered the importance of reliable performance in real-world conditions. Understanding these aspects helps ensure that heat pump systems operate safely, efficiently, and without interruption throughout the winter season.
