Heat Exchangers in Heat Pump Systems: The Hidden Key To Efficiency

Views: 0

Inquire

facebook sharing button
linkedin sharing button
whatsapp sharing button
twitter sharing button
wechat sharing button
line sharing button
pinterest sharing button
sharethis sharing button

Introduction


When designing a highly efficient and sustainable heat pump system, the heat exchanger is often overlooked—yet it plays a decisive role in system performance. Whether it's a residential heat pump heater or a commercial-grade heating unit, the heat exchanger is responsible for the critical task of transferring and converting thermal energy.

End users and junior engineers often ask: “What is a heat exchanger?”, “How does it differ from a heat pump?”, “What is its function?” These questions reflect a market gap: while heat exchangers are technically vital, they remain poorly understood.

This blog offers a complete breakdown—from definitions and types to operation principles, applications, and maintenance tips—explaining how heat exchangers boost heat pump installation efficiency and heating performance.




1. What Is a Heat Exchanger?

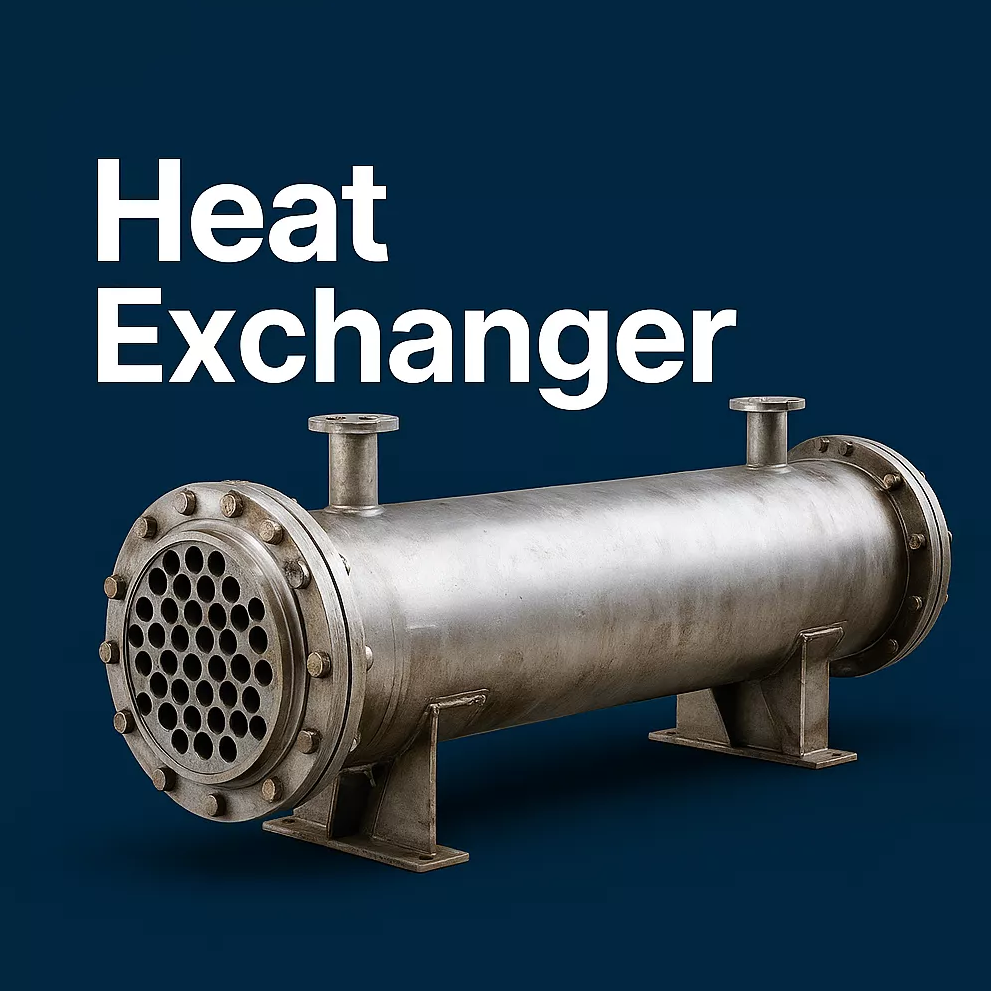

A heat exchanger is a device that transfers thermal energy between two fluids without mixing them. In heat pump systems, it enables energy exchange between refrigerant and water or air, directly affecting energy efficiency.

Key Functions:

Transfers low-temperature energy to refrigerant (evaporator side)

Transfers high-temperature energy to water or air (condenser side)

Stabilizes output temperature and operational performance

Though often confused with heat pumps, heat exchangers are internal components of the heat pump system and act as the thermal engine.




2. Main Applications of Heat Exchangers

Heat exchangers are used across a wide range of industries and systems:

HVAC systems: air conditioning, residential and commercial heating

Industrial processes: chemical plants, metallurgy, food processing

Energy systems: power plants, gas boilers

Automotive cooling: engine radiators

Electronics: server and inverter cooling using liquid or heat pipe solutions

In the heat pump industry, plate, microchannel, and shell-and-tube exchangers are most commonly used. Their efficiency directly affects overall system performance.




3. Types of Heat Exchangers

Heat exchangers can be categorized by their structure and heat transfer method:

TypeStructure DescriptionAdvantagesLimitationsTemperature RangeApplication
Shell and TubeFluids flow inside and outside tubes, separated by a shellHigh pressure resistance, durable, easy to cleanBulky size, moderate thermal efficiencyIdeal for >150°CIndustrial and water source heat pumps
PlateFluids pass through thin corrugated plates, alternating channelsHigh efficiency, compact, service-friendlySensitive to scaling, gasket maintenance neededUp to 120–150°CResidential/commercial heat pumps
MicrochannelAluminum microchannels with fine passagewaysLightweight, fast heat transferHigher cost, not suitable below –25°CBest above 0°CHigh-efficiency smart HVAC units




4. How Does a Heat Exchanger Work?

Heat exchangers operate through thermal conduction and forced convection. In a typical heat pump cycle:

Compressed refrigerant enters the condenser and releases heat

Heat is transferred to water or air for space heating or domestic hot water

Refrigerant evaporates after expansion, absorbing ambient heat

The cycle repeats in a closed loop

The better the heat exchanger performance, the higher the system’s coefficient of performance (COP) and seasonal COP (SCOP), directly boosting heat pump heating efficiency.





5. Heat Exchanger Use in Different Heat Pump Types

Different heat pump types require specific heat exchanger designs. Choosing the appropriate type is critical for optimizing heat pump installation efficiency and system lifespan.


5.1 Air Source Heat Pump

Air source heat pumps are the most widely adopted systems due to their installation convenience and lower upfront cost. Their efficiency depends largely on the heat exchanger design.

▶ System Types:

Monoblock: All-in-one outdoor unit using compact plate heat exchangers

Split system: Refrigerant loops between indoor and outdoor units; outdoor side uses microchannel, indoor uses plate exchangers

▶ Operational Requirements:

Must withstand temperatures down to -25°C

Coatings and anti-frost features are crucial in humid, freezing climates

▶ Smart Integration:

IoT and inverter control demand rapid thermal response

Dynamic modulation of temperature differential improves both efficiency and comfort

In European markets, particularly in Germany, Wärmepumpen (heat pump heaters) rely on microchannel exchangers for compact, high-efficiency configurations.

5.2 Water Source Heat Pump

Uses shell-and-tube heat exchangers for stable and high-capacity heat transfer

Performs best with clean, consistent water sources like lakes or geothermal wells

5.3 Ground Source Heat Pump

Uses buried U-shaped or horizontal loops as ground-side exchangers

Requires PE-RT or HDPE material for durability

Low-temperature ground heat ensures efficient, year-round operation





6. Common Heat Exchanger Failures and Maintenance

Despite their durability, heat exchangers require ongoing care to maintain peak performance:

Corrosion – Use stainless steel, titanium, or protective coatings

Scaling and Clogging – Add filters, use treated water, and clean regularly

Leaks – Replace aging gaskets and pressure test regularly

Proper maintenance extends system life and ensures stable heat pump heating efficiency.




Conclusion:

The true ceiling of a heat pump system isn’t set by the compressor or software—it’s the heat exchanger that determines thermal efficiency and long-term performance.

At SolarEast, we integrate premium plate and microchannel heat exchanger technologies across our air and water source heat pumps. Our systems are deployed throughout Europe and North America, delivering tangible energy savings and comfort to end users.


Whether you're designing residential heat pump heaters or large-scale HVAC systems, your choice of heat exchanger directly affects ROI.

Contact us today to explore customized, high-efficiency solutions for your market.
