Solareast Heat Pump Ltd. offers a reliable and efficient R32 air-to-water heating and cooling system.

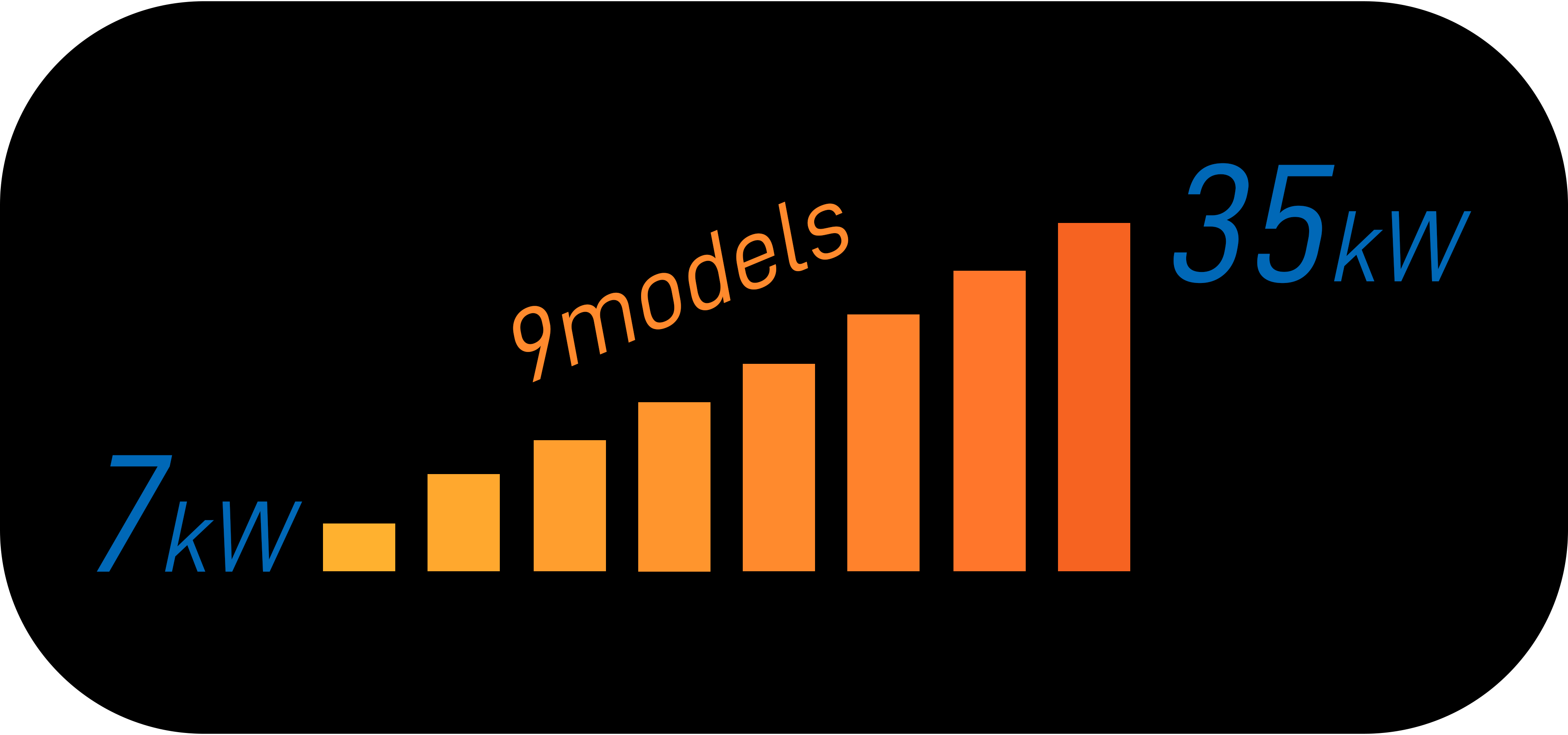

A Wide Range Of Models To Choose From
There are numerous models of swimming pool heat pumps from Solareast, ranging from 7KW to 35KW. The ideal one for your pool is yours to choose.
Heating, Cooling & Automatic Modes
Encompasses both automatic and heating/cooling modes, allowing for a broad range of temperatures for the target water temperature and the operating environment.
GWP For R32 Is 60% Lower Than for R410a
Solareast takes pride in the introduction of Inver SPARK Series Inverter Pool Heat Pump, using R32 a revolutionary refrigerant fluid.
① With R32 refrigerate remarkable attributes, R32 sets itself apart from R410a as it effectively reduces greenhouse gas emissions by an impressive 60%.
② Not only that, but it also enables a 10% decrease in gas quantity per kilowatt, making it an energy-efficient choice.
③ R32 refrigerate recyclability and user-friendly nature further add to Inver SPARK Series Inverter Pool Heat Pump‘s appeal.
④ One of the key advantages of R32 is its absolute zero impact on the ozone layer, highlighting its commitment to protecting the environment.
By opting for R32 Inver SPARK Series Inverter Pool Heat Pump, you not only contribute to sustainability but also play a role in creating a greener future. Join Solareast in their mission to promote a more sustainable world and embrace R32 as the refrigerant fluid of choice.

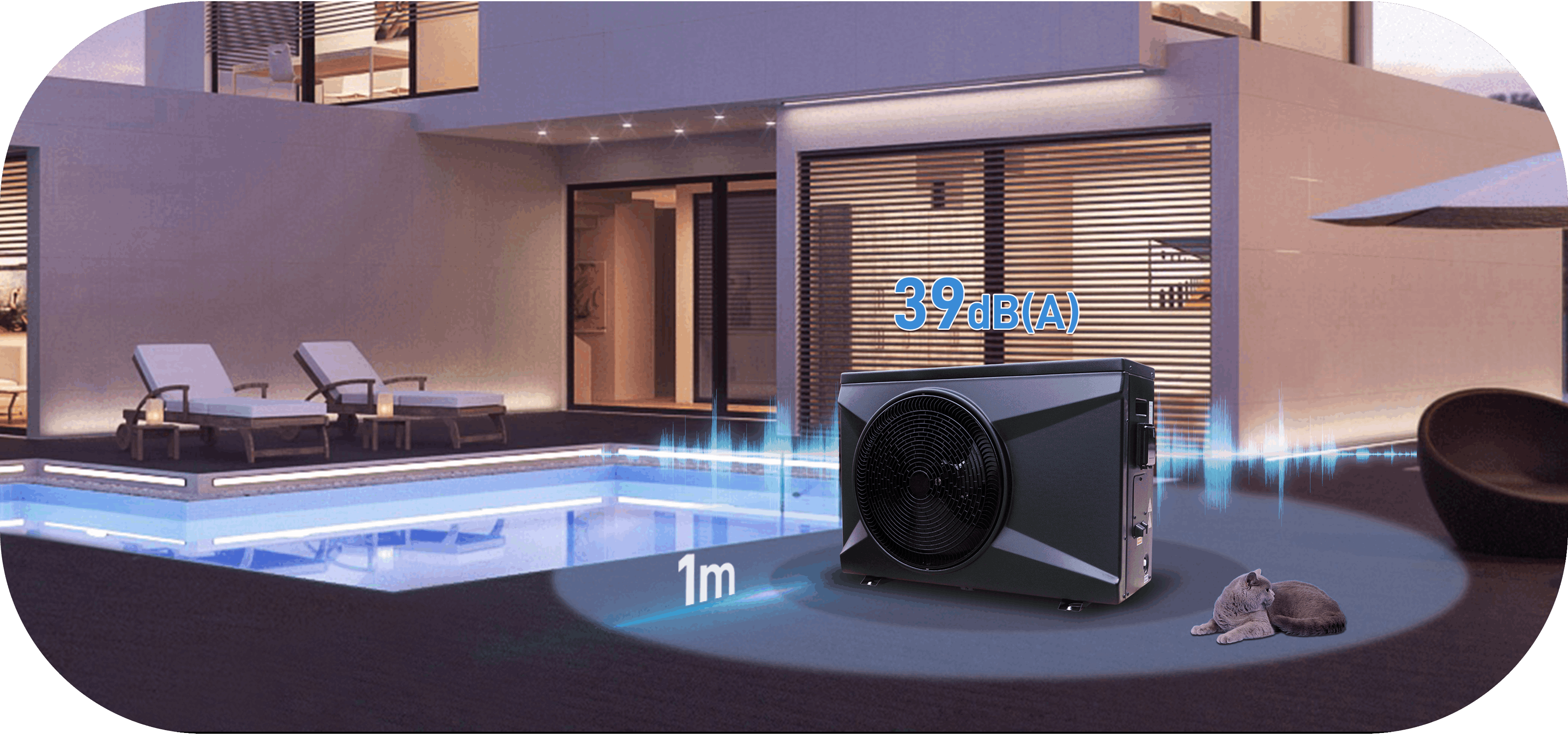

Silence Mode
The R32 Inver SPARK Series Inverter Pool Heat Pump has a sound pressure of 39dB(A) at a distance of one meter.
When the temperature remains constant,the compressor and fan in an inverter operate at extremely low speeds,reducing sound levels to only air movement (about 39 dB(A)).
Everything On One App
The operating modes for the Eco Inverter and Power Inverter are available on the new control panel, which has a 20-meter wired extension. Thanks to the built-in WiFi module, the swimming pool heat pump can be operated remotely via a smart phone.
Solareast Heat Pump Ltd. offers a reliable and efficient R32 air-to-water heating and cooling system.
A Wide Range Of Models To Choose From
There are numerous models of swimming pool heat pumps from Solareast, ranging from 7KW to 35KW. The ideal one for your pool is yours to choose.
Heating, Cooling & Automatic Modes
Encompasses both automatic and heating/cooling modes, allowing for a broad range of temperatures for the target water temperature and the operating environment.
GWP For R32 Is 60% Lower Than for R410a
Solareast takes pride in the introduction of Inver SPARK Series Inverter Pool Heat Pump, using R32 a revolutionary refrigerant fluid.
① With R32 refrigerate remarkable attributes, R32 sets itself apart from R410a as it effectively reduces greenhouse gas emissions by an impressive 60%.
② Not only that, but it also enables a 10% decrease in gas quantity per kilowatt, making it an energy-efficient choice.
③ R32 refrigerate recyclability and user-friendly nature further add to Inver SPARK Series Inverter Pool Heat Pump‘s appeal.
④ One of the key advantages of R32 is its absolute zero impact on the ozone layer, highlighting its commitment to protecting the environment.
By opting for R32 Inver SPARK Series Inverter Pool Heat Pump, you not only contribute to sustainability but also play a role in creating a greener future. Join Solareast in their mission to promote a more sustainable world and embrace R32 as the refrigerant fluid of choice.
Silence Mode
The R32 Inver SPARK Series Inverter Pool Heat Pump has a sound pressure of 39dB(A) at a distance of one meter.
When the temperature remains constant,the compressor and fan in an inverter operate at extremely low speeds,reducing sound levels to only air movement (about 39 dB(A)).
Everything On One App
The operating modes for the Eco Inverter and Power Inverter are available on the new control panel, which has a 20-meter wired extension. Thanks to the built-in WiFi module, the swimming pool heat pump can be operated remotely via a smart phone.
Model | BYC-007TD1 | BYC-010TD1 | BYC-013TD1 | BYC-017TD1 | BYC-021TD1 | BYC-030TD1 | BYC-035TD1 |
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |||||||
Heating Capacity (kW) | 7.6~1.7 | 9.5~2.3 | 13~3.0 | 17~3.8 | 21~4.8 | 28~6.8 | 35~8.8 |
Power Input (kW) | 1.12~0.11 | 1.40~0.15 | 1.91~0.19 | 2.5~0.24 | 3.09~0.30 | 4.12~0.43 | 5.15~0.56 |
COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 |
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |||||||
Heating Capacity (kW) | 6.1~1.4 | 7.6~1.9 | 9.8~2.3 | 13.5~3 | 16.5~3.8 | 23~5.5 | 25.5~6.4 |
Power Input (kW) | 1.24~0.18 | 1.55~0.25 | 1.96~0.30 | 2.76~0.39 | 3.37~0.5 | 4.7~0.72 | 5.2~0.84 |
COP | 7.6~4.9 | 7.6~4.9 | 7.6~5 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 |
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | |||||||
Cooling Capacity (kW) | 4.2~1.0 | 5.3~1.3 | 7.2~1.7 | 9.4~2.1 | 11.6~2.7 | 14.9~3.8 | 19.3~4.9 |
Power Input (kW) | 1.11~0.15 | 1.4~0.19 | 1.89~0.25 | 2.47~0.31 | 3.05~0.4 | 3.92~0.57 | 5.08~0.73 |
EER | 6.6~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 |
* General data | |||||||
Power supply | 220~240V/1/50 | ||||||
Max Power Input (kW) | 1.55 | 1.78 | 2.2 | 2.6 | 3.2 | 4.45 | 4.76 |
Max Current (A) | 7.3 | 8.3 | 10.2 | 12 | 14.7 | 20.4 | 30 |
Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 |
Refrigerant | R32 | ||||||
Heat Exchanger | Titanium | ||||||
Air Flow Direction | Horizontal | ||||||
Kind of defrost | by 4 way valve | ||||||
Working temp. range (℃) | -15~43 | ||||||
Casing Material | ABS | ||||||
Water Proof Level | IPX4 | ||||||
Noise level 1m dB(A) | 39~49 | 40~52 | 42~53 | 43~55 | 45~56 | 47~58 | 49~59 |
Noise level 10m dB(A) | 20~29 | 20~32 | 22~33 | 23~35 | 25~36 | 27~38 | 29~39 |
Net Weight (kg) | 42 | 43 | 53 | 54 | 58 | 88 | 98 |
Gross Weight (kg) | 53 | 54 | 64 | 65 | 69 | 99 | 110 |
Net Dimensions (mm) | 864*349*592 | 925*364*642 | 1084*399*737 | ||||
Package Dimensions (mm) | 930*400*640 | 990*435*760 | 1146*460*862 |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
