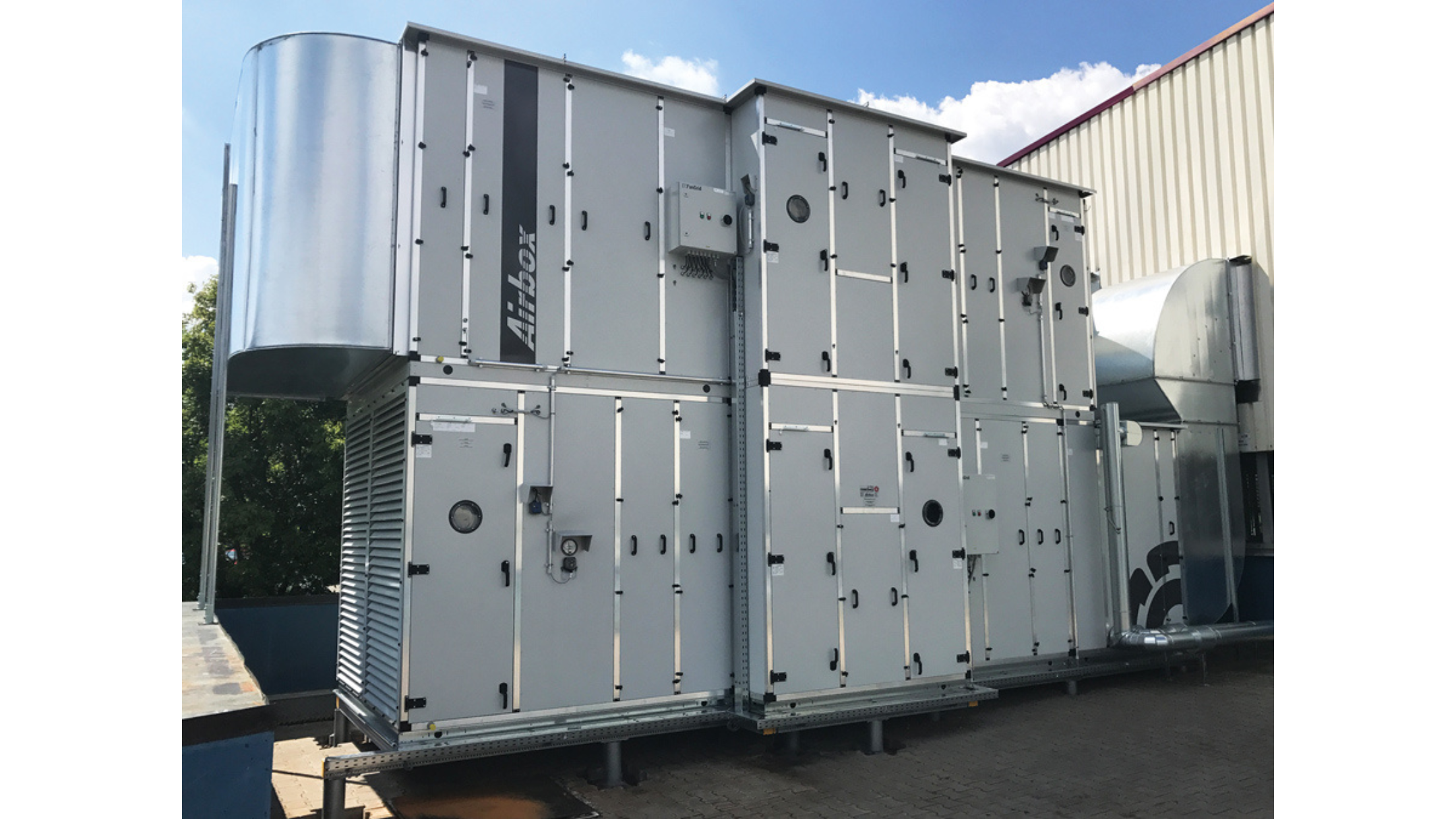

An air handling unit (AHU) is a centralized component in an HVAC system that is responsible for regulating and circulating air. It typically consists of a fan, heating or cooling coils, filters, and dampers, all enclosed within a metal housing. AHUs are designed to treat large volumes of air and are commonly installed in mechanical rooms, rooftops, or service areas in commercial and industrial buildings.
AHUs can control temperature, humidity, and air quality by mixing fresh and recirculated air and passing it through various conditioning components. There are several types of AHUs, such as terminal units, packaged units, and custom-built modular systems.
AHU units are essential in environments where indoor air quality and energy efficiency are priorities, such as hospitals, airports, and large office buildings.

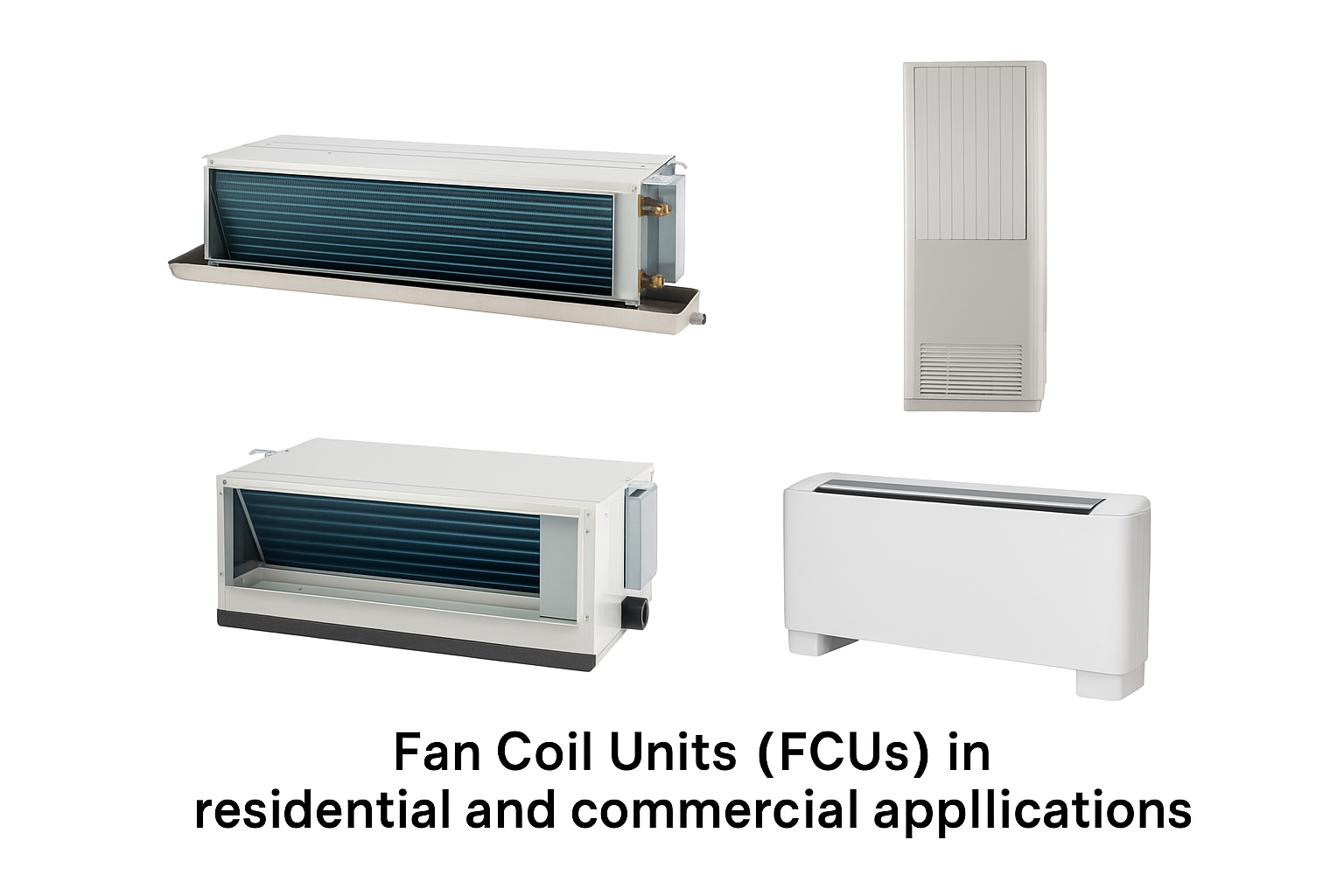

A fan coil unit (FCU) is a smaller and more localized device used within HVAC systems to control the temperature in individual rooms or zones. It typically consists of a fan and a coil through which hot or cold water circulates. When air passes over the coil, it is heated or cooled and then delivered to the room.
FCU units are often found in hotels, residential apartments, small offices, and retail spaces. Unlike AHUs, FCUs do not introduce fresh air from outside; they simply recirculate indoor air and adjust the temperature. These units are compact, energy-efficient, and allow for zone-specific control, making them ideal for buildings where occupants require different comfort settings in different spaces.
In many HVAC systems, FCU HVAC setups are paired with a centralized AHU unit to combine the benefits of centralized air treatment with localized control.
| Feature | AHU Unit | FCU Unit |
|---|---|---|
| System Scope | Centralized air handling | Localized room-level control |
| Air Source | Mix of outdoor and recirculated air | Indoor air only |
| Size & Installation | Large, needs service space | Compact, wall/ceiling mounted |
| Functionality | Full air treatment (temp, humidity) | Basic heating or cooling only |
| Applications | Commercial, industrial buildings | Residential, hotels, small offices |
| Maintenance | Moderate to complex | Simple and user-friendly |
| Integration | Part of larger HVAC system | Can operate standalone |
The air handling unit is designed for centralized control, while the fan coil system offers flexibility and customization in smaller zones.
Yes, FCU units can operate without an AHU. In many buildings, FCUs are connected directly to a chilled water system or boiler that provides hot or cold water, making it possible to function independently. However, in larger systems, an AHU often supplies treated fresh air that complements FCUs' room-level temperature control.
While AHU units handle ventilation and filtration, FCUs are typically limited to temperature adjustments. To ensure good indoor air quality, standalone FCU systems may require additional ventilation or filtration systems.
HVAC (Heating, Ventilation, and Air Conditioning) is a broad term that refers to the entire system that controls the climate and air quality in buildings. An air handling unit is a component within this larger system.
In essence, AHU is to HVAC what the heart is to the circulatory system: it helps move and condition air, but doesn’t operate independently of other parts like chillers, boilers, and ductwork.
Packaged AHU
Pre-assembled units ideal for commercial buildings like shopping malls and office complexes, offering efficient installation and maintenance.
Modular AHU
Custom-built systems suited for large and specialized facilities such as hospitals, airports, and cleanrooms where precise control is needed.
Rooftop AHU
Designed for outdoor installation, commonly used in schools and retail centers to save indoor space while managing ventilation and temperature.
Terminal AHU (Zone AHU)
Applied in hotels or multi-zone buildings to independently manage air conditioning per room or section.
Horizontal FCU
Ceiling-mounted units perfect for hotel rooms, healthcare wards, or office areas where space-saving is key.
Vertical FCU
Floor-standing units used in residential apartments and dormitories, offering easy installation and accessibility.
Concealed FCU
Installed within walls or ceilings, commonly found in luxury settings such as high-end residences or executive offices.
Exposed FCU
Surface-mounted, cost-effective units suitable for industrial or utility environments where function takes precedence over aesthetics.
AHUs and FCUs are often used in combination in large-scale HVAC designs to balance centralized efficiency with localized control. Here's how they work together:
The AHU acts as the central air processor, bringing in and conditioning fresh air—regulating temperature, humidity, and air quality.
The FCUs are distributed throughout the building to allow individual rooms or zones to control their specific temperature needs.
Example Use Case:
In a high-rise office building, an AHU on the rooftop handles fresh air intake, filtration, and cooling. The air is distributed to each floor, where concealed FCUs inside office rooms fine-tune the temperature for occupant comfort.
This combination is especially effective in buildings that require both efficient ventilation and flexible comfort control—such as hospitals, luxury hotels, universities, and commercial office complexes.
AHUs and FCUs are often used in combination in large-scale HVAC designs to balance centralized efficiency with localized control. Here's how they work together:
The AHU acts as the central air processor, bringing in and conditioning fresh air—regulating temperature, humidity, and air quality.
The FCUs are distributed throughout the building to allow individual rooms or zones to control their specific temperature needs.
Example Use Case:
In a high-rise office building, an AHU on the rooftop handles fresh air intake, filtration, and cooling. The air is distributed to each floor, where concealed FCUs inside office rooms fine-tune the temperature for occupant comfort.
This combination is especially effective in buildings that require both efficient ventilation and flexible comfort control—such as hospitals, luxury hotels, universities, and commercial office complexes.
A Fresh Air Handling Unit (FAHU) is a subtype of AHU that specifically brings in and conditions fresh outdoor air before distributing it through a building. It differs from a standard AHU that may mix outdoor and return air.
FAHUs are especially important in facilities requiring high air purity and ventilation, such as hospitals, laboratories, or schools.
When deciding between an AHU and an FCU, consider:
Building size and layout
Occupant needs for temperature control
Ventilation and filtration requirements
Energy efficiency goals
Choose an air handling unit for centralized management and superior air quality across a large space. Opt for a fan coil system for simpler, room-specific control with lower installation and operational costs.
An AHU conditions and circulates air within a building. It mixes outdoor and return air, then filters, heats or cools it, and distributes it via ductwork.
Not exactly. A fan coil unit is a component of an HVAC system that adjusts room temperature. HVAC is the complete system, including heating, ventilation, and air conditioning components like AHUs, FCUs, chillers, boilers, etc.
Usually no. Most fcu units are ductless and installed directly in the ceiling or wall of a room, blowing air straight into the space.
Technically yes, but they are more common in commercial and industrial buildings. For homes, FCUs or mini-split systems are often more practical.
A fan coil system provides individual zone temperature control using a coil and fan mechanism. It operates on recirculated air and is ideal for rooms where independent temperature adjustment is needed.
Both AHU and FCU play crucial roles in HVAC systems. An ahu unit provides centralized air treatment, while fcu units deliver localized comfort. Depending on the building’s design and usage, these two systems may function independently or together to deliver optimal indoor comfort and efficiency.
By understanding their differences and advantages, HVAC professionals and property managers can design systems that balance performance, cost, and comfort.
