A heat pump moves heat from outside to inside your home. It provides warmth in winter and cooling in summer. The main components for heat pumps include the compressor, water pump, controller, electronic expansion valve, plate heat exchanger, and 4-ways valve. The compressor plays a crucial role in moving and compressing the refrigerant. The water pump helps circulate the heated or cooled water. The controller manages system settings and operations. The electronic expansion valve controls the flow of refrigerant. The plate heat exchanger transfers heat effectively. The 4-ways valve allows the heat pump to switch between heating and cooling modes.
* components for heat pumps: compressors

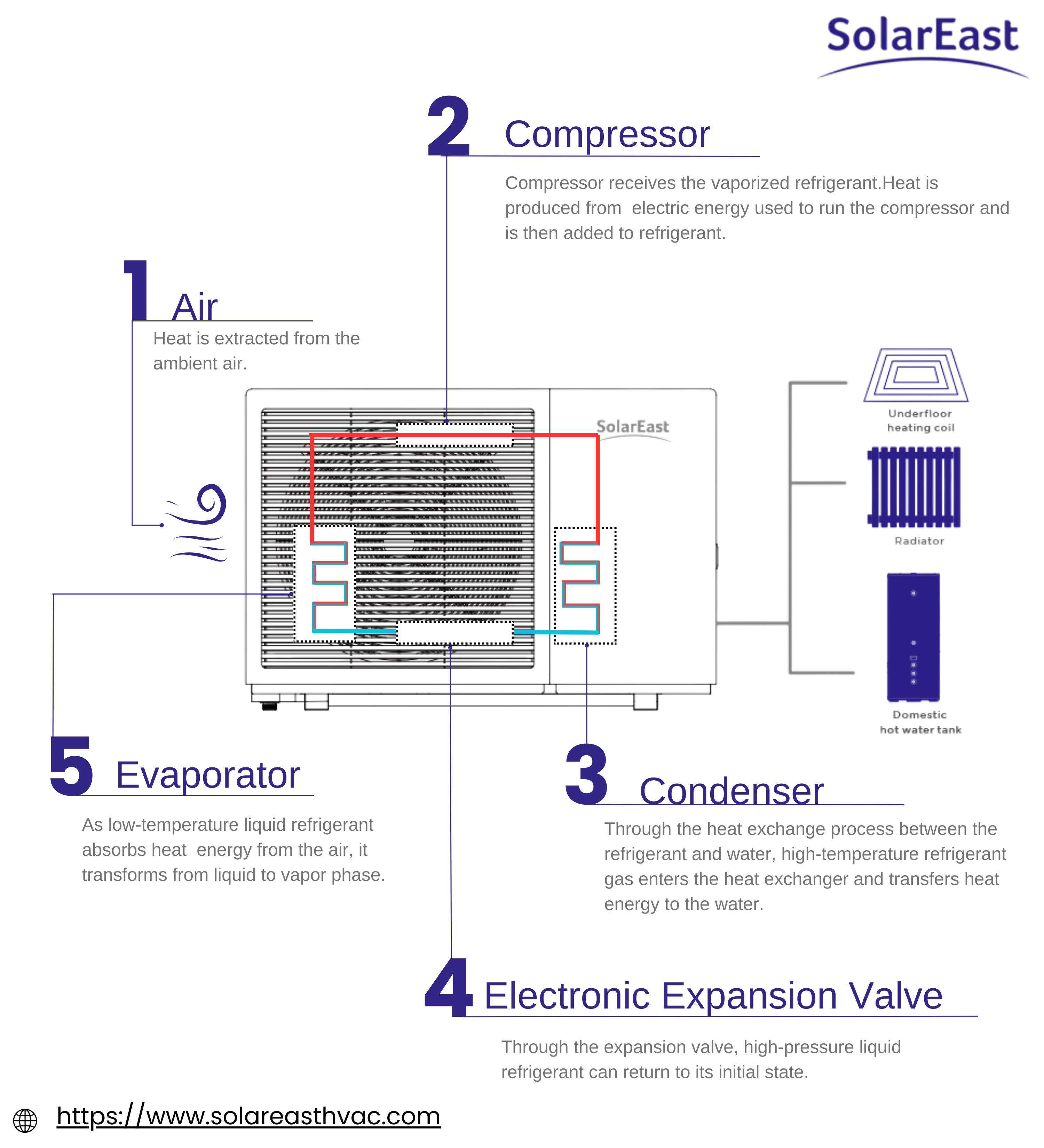

A heat pump uses a simple cycle to move heat into or out of your home. First, the refrigerant absorbs heat from outside in the evaporator. It then moves to the compressor, where pressure increases, causing the refrigerant to heat further. After compression, the refrigerant moves to the condenser. Here, it releases heat into your home, cooling down in the process. Finally, it passes through an expansion valve, reducing its pressure and temperature. The refrigerant returns to the evaporator, and the cycle repeats. The compressor is key to efficiency, showing the importance of compressors in heat pumps.
* How Does a Heat Pump Work?
Compressor: The compressor circulates refrigerant and increases its pressure, making it very hot. This step highlights the importance of compressors in heat pumps because it directly affects system efficiency and heating performance.
Water Pump: It circulates water through your heating system, distributing heat evenly to radiators or underfloor heating.
Controller: This device manages the heat pump's operation, maintaining desired temperatures and switching between heating and cooling modes as needed.
Electronic Expansion Valve: This valve controls the flow of refrigerant into the evaporator, lowering the refrigerant’s pressure and temperature, preparing it to absorb heat efficiently.
Plate Heat Exchanger: Here, heat transfers between the refrigerant and water. This component helps move captured heat into your home's heating system.
4-Ways Valve: This valve lets the heat pump switch easily between heating and cooling functions by changing refrigerant flow direction.
Choosing the right heat pump compressor types can greatly impact your heat pump’s efficiency, reliability, and cost-effectiveness. Compressors play a crucial role in moving refrigerant through the heat pump system, directly affecting performance. There are three main types of compressors commonly used in heat pumps: rotary, twin rotary, and scroll compressors. Understanding their differences, strengths, and ideal uses helps you choose the best compressor for your specific needs.
Here is a quick comparison table of the most common heat pump compressor types to help you choose the right one.
| Compressor Type | Advantages | Disadvantages | Best Application Scenarios |
| Rotary Compressor |
|
|
|
| Twin Rotary Compressor |
|
|
|
| Scroll Compressor |
|
|
|

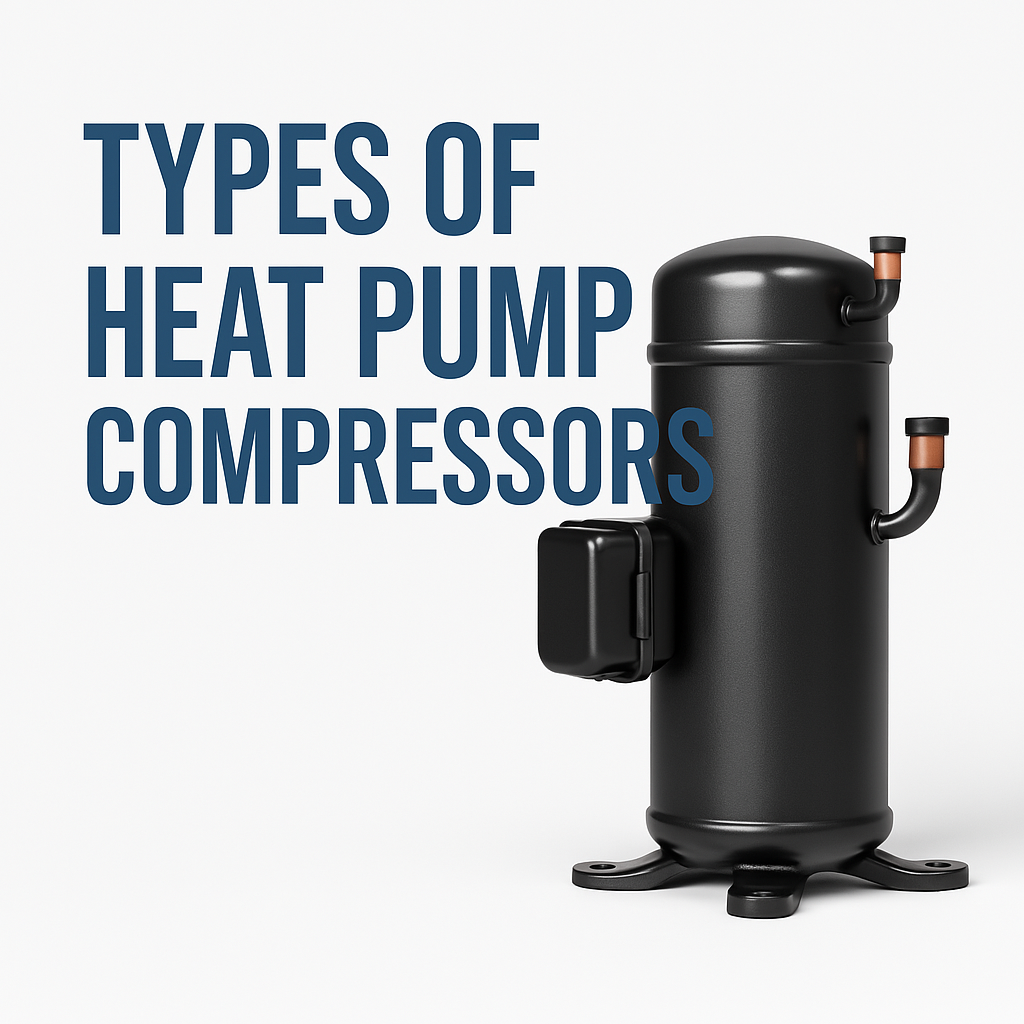

*Types of Heat Pump Compressors

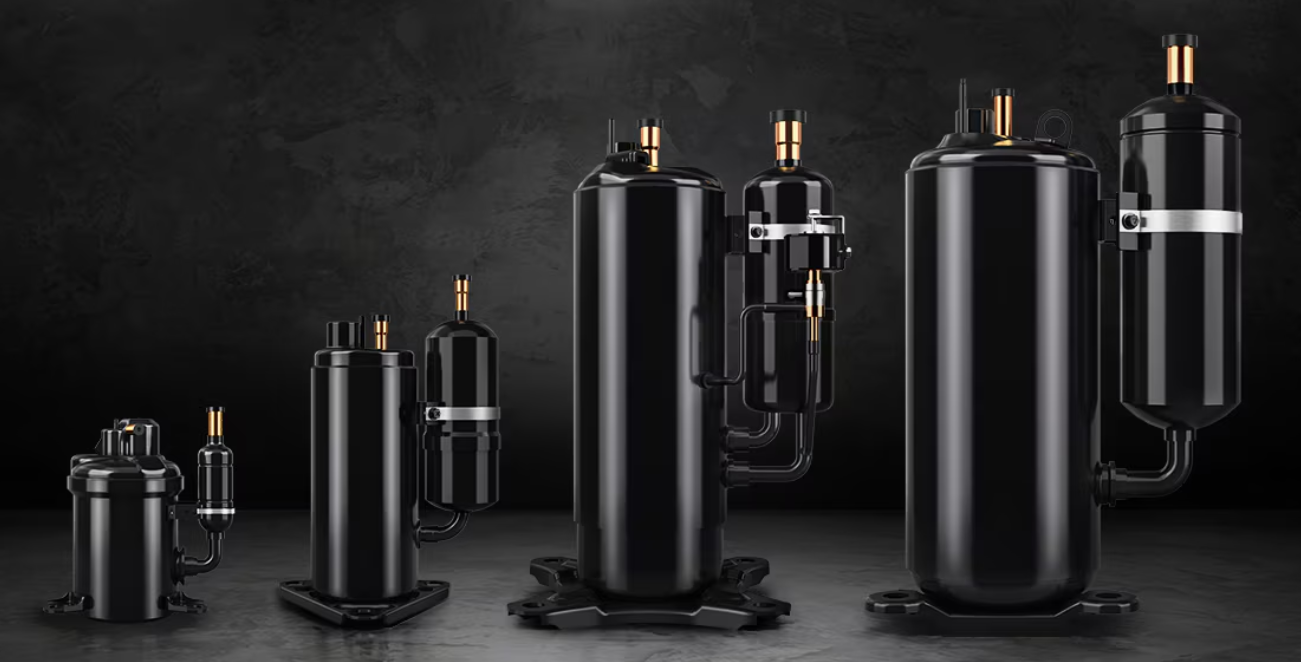

Rotary compressors use rotating blades or vanes to compress refrigerant. They work by trapping refrigerant in a chamber and continuously reducing its volume, increasing its pressure and temperature. These compressors are typically found in smaller, residential heat pump systems. They offer several advantages, including affordability, compact size, and relatively quiet operation. Because of their simplicity, rotary compressors are often easy and economical to maintain and replace.
However, rotary compressors do have limitations. Their performance tends to decline in very cold weather, which makes them less suitable for regions with harsh winters. Additionally, they have a limited capacity and are not typically used in larger installations or commercial settings.
* Rotary Compressors

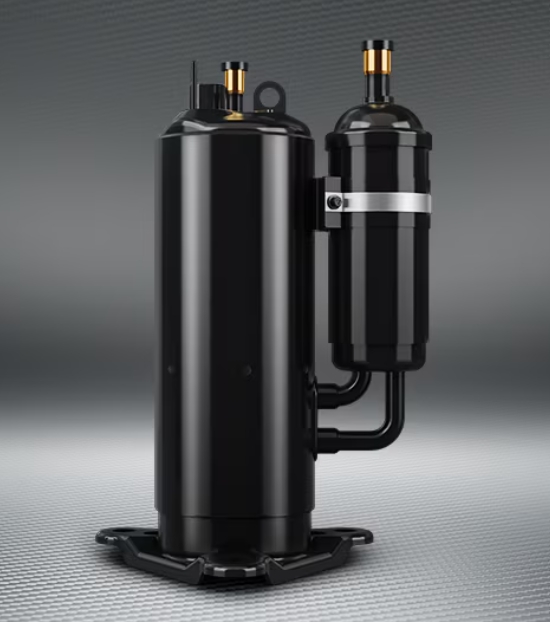

Twin rotary compressors, also known as dual rotary compressors, build upon the rotary compressor design by using two rotors instead of one. These two rotors are offset to create more balanced and smoother operation. The dual rotor design significantly reduces vibration and noise compared to single rotary compressors. They also offer improved efficiency, especially at partial loads, making them suitable for medium-sized residential buildings and small commercial applications.
Twin rotary compressors are ideal when quiet operation and reliability are important factors. Their balanced operation extends compressor lifespan, reduces wear and tear, and improves overall system performance. However, these compressors come with a slightly higher initial cost compared to single rotary compressors, though this cost is often justified by improved performance, reliability, and efficiency.
* Twin Rotary Compressors

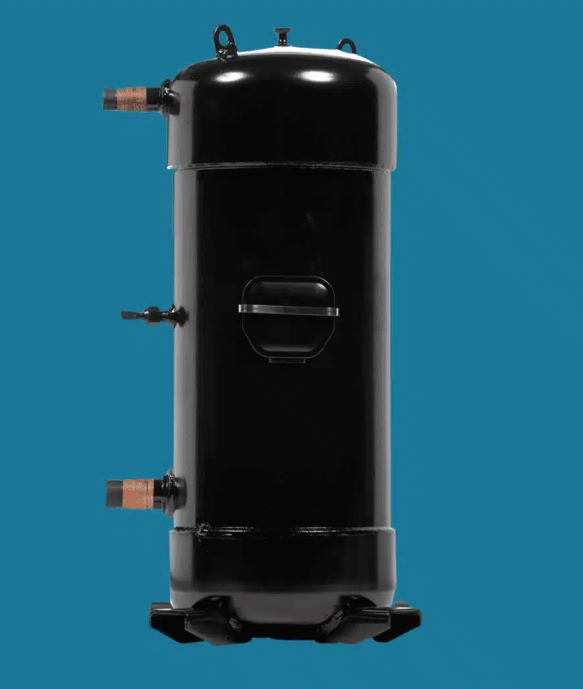

Scroll compressors use two spiral-shaped scrolls, one stationary and one orbiting, to compress refrigerant effectively. As the orbiting scroll moves around the stationary scroll, refrigerant is progressively compressed towards the center. Scroll compressors are known for their exceptional efficiency, quiet operation, and robust durability. Their simple construction means fewer moving parts, resulting in less wear and fewer mechanical failures.
Due to their high reliability and efficiency, scroll compressors are often the preferred choice for larger residential properties, commercial buildings, and industrial applications. They perform exceptionally well in both mild and extreme climates, maintaining efficiency even at lower outdoor temperatures.
However, the initial investment for a scroll compressor is generally higher than rotary and twin rotary compressors. Despite this higher upfront cost, scroll compressors typically offer substantial long-term savings through lower energy consumption and fewer maintenance requirements.
In conclusion, understanding heat pump compressor types allows you to make informed decisions based on your specific heating and cooling needs. Rotary compressors are ideal for smaller, budget-conscious residential applications, while twin rotary compressors offer balanced performance for medium-sized properties. Scroll compressors stand out for their superior efficiency and reliability, particularly in larger-scale and more demanding installations. Carefully considering your climate, heating demands, and budget can help determine the most suitable compressor type for your heat pump system.
* Scroll Compressors
Improving your heat pump's efficiency starts with optimizing its core components. The compressor is especially vital, underscoring the importance of compressors in heat pumps. Here are six ways related to key components to boost performance:
Compressor: Selecting high-quality compressors ensures optimal pressure and refrigerant flow. Regular compressor maintenance helps avoid efficiency loss. Understanding components for heat pumps: Compressors help maximize your system’s performance.
Water Pump: Ensure your water pump runs smoothly by regularly checking for leaks and blockages. Proper water circulation reduces strain on the compressor and improves efficiency.
Controller: Uses an advanced digital controller to manage temperatures precisely. A smart controller helps compressors run efficiently by avoiding unnecessary operation cycles.
Electronic Expansion Valve: This valve should be regularly inspected for proper operation. An accurately controlled expansion valve maintains optimal refrigerant flow, reducing compressor workload.
Plate Heat Exchanger: Regular cleaning of the heat exchanger ensures efficient heat transfer, relieving pressure on compressors and maintaining performance.
4-Ways Valve: The Proper function of this valve allows easy switching between modes, preventing compressor overuse. Inspect and maintain it regularly.
Focusing on these components ensures your compressor functions efficiently, emphasizing the crucial role of compressors in heat pump efficiency.
Several factors influence the cost to replace heat pump compressor, typically ranging from $1,000 to $2,500, including parts and installation. Here are the main considerations:
Single-stage compressors are less expensive initially but less efficient overall. They run constantly at full speed, wasting energy when demand is low. In contrast, two-stage or variable-speed compressors cost more upfront but save money through improved energy efficiency and reduced electricity bills over time.
High-quality brands and advanced models usually come with a higher price tag. Paying more for a reputable brand often means better performance, durability, and longer warranty coverage, ultimately lowering the long-term cost to replace the heat pump compressor.
Labor charges for replacing a compressor vary based on your location and the complexity of the installation. Additional repairs, modifications, or complex installations can significantly increase the overall cost.
Larger heat pumps require bigger, more powerful compressors. These compressors typically cost more, raising your total replacement cost.
Starting in 2025, new HVAC systems must use environmentally friendly refrigerants, such as R-454B. Compliance with these new regulations and the introduction of safety features could increase compressor prices further.
Higher-efficiency heat pumps (higher SEER and HSPF ratings) cost more initially. However, these efficient units provide long-term savings by reducing energy usage and operational costs, offsetting the higher upfront investment.
Considering these factors carefully helps manage the overall heat pump compressor replacement cost and ensures the best value for your investment.
