Introduction
Understanding the dynamics of heat pump COP is essential for anyone involved in HVAC system design or evaluation.
The Coefficient of Performance (COP) is a key metric for evaluating the energy efficiency of heat pumps. It represents the ratio between the thermal energy output and the electrical energy input. A higher COP indicates greater efficiency.

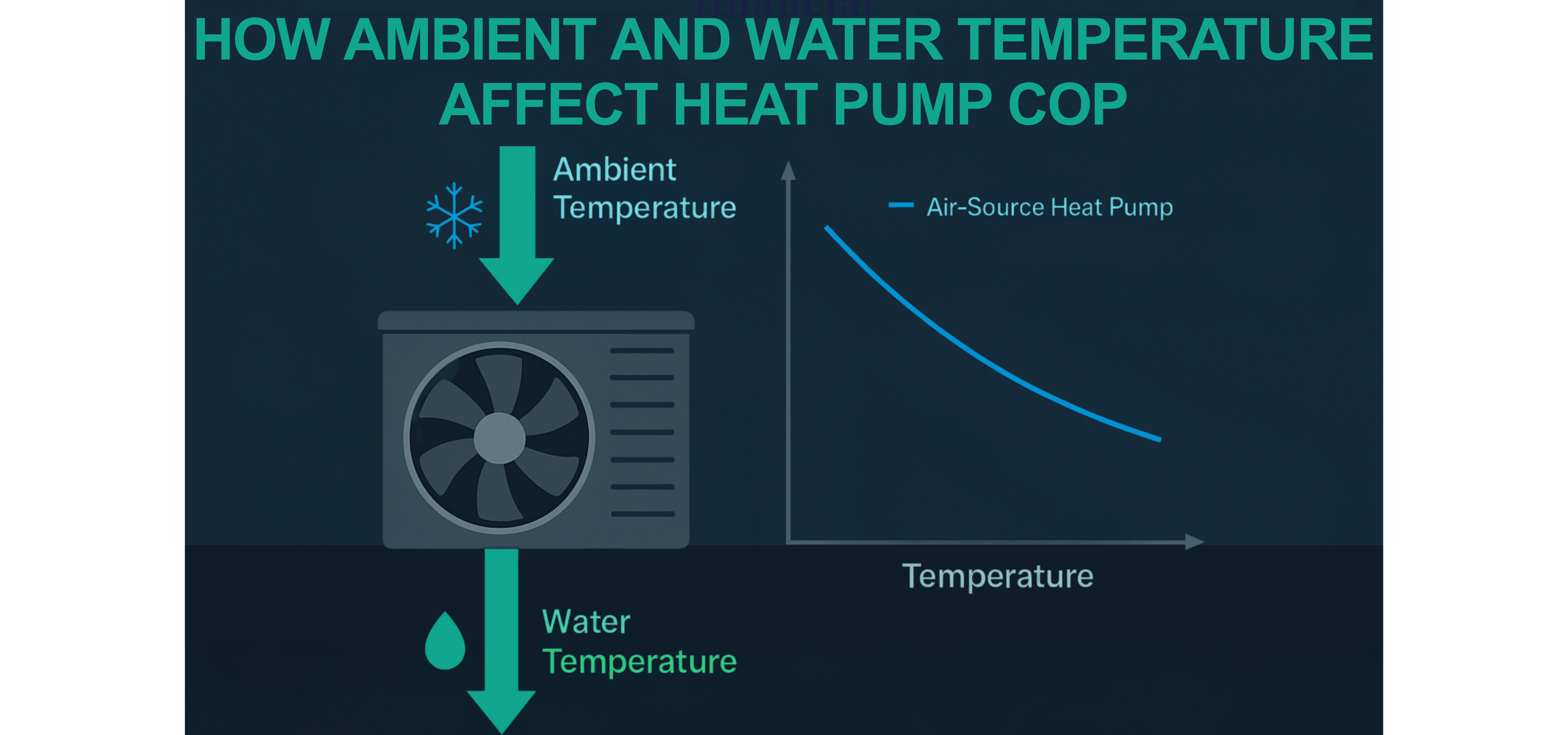

According to the International Energy Agency (IEA), increasing the heat pump COP by just 0.5 can reduce operating carbon emissions by around 7% (IEA, 2022). This article explores how ambient temperature and water outlet temperature—two fundamental variables—affect heat pump COP, drawing from thermodynamic principles, field data, and practical engineering perspectives.
Based on the Carnot cycle, the theoretical maximum heat pump COP is defined as:
COP_max = T_hot / (T_hot - T_cold)
Where T is absolute temperature in Kelvin. The formula reveals that the smaller the temperature lift between the source and the sink, the higher the efficiency.
In practice, real systems operate well below this theoretical maximum. According to the ASHRAE Handbook (2020), modern heat pumps typically achieve 40–60% of the Carnot limit, due to thermodynamic losses and component inefficiencies.
Engineering insight: The Carnot principle serves as a valuable benchmark, but real-world system behavior is driven by compressor performance, refrigerant thermophysical properties, and system control strategy.
The European Heat Pump Association (EHPA) provides seasonal performance testing results that highlight the impact of falling ambient temperatures:

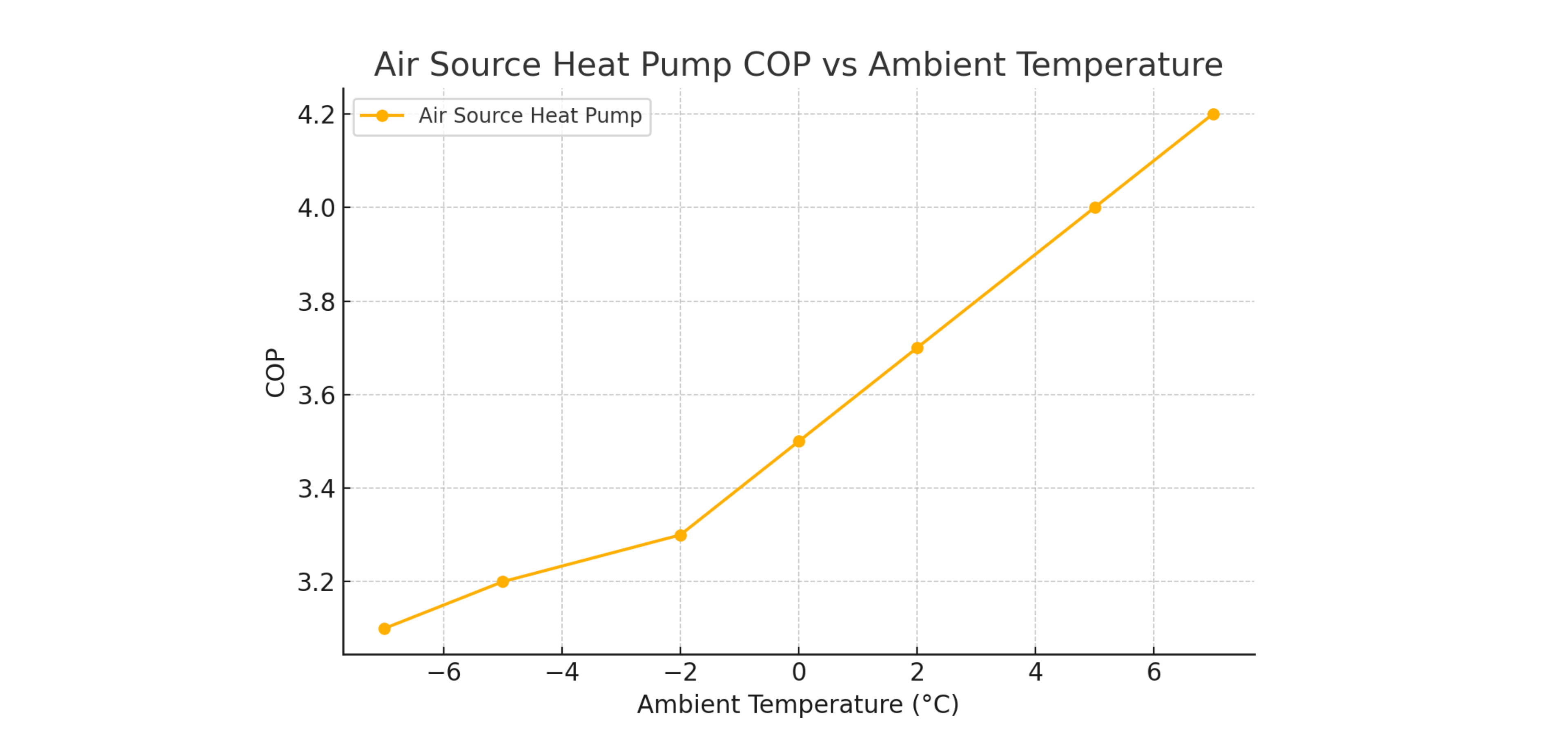

When outdoor temperature drops from 7°C to -7°C:
Air-source heat pump COP drops from 4.2 to 3.1 (−26%)
Ground-source COP declines from 5.1 to 4.3 (−16%)
These trends are widely observed in climate zones with high heating demand. For example, in southern Finland, several residential units recorded COP values below 2.0 during prolonged cold spells.
(Source: EHPA Market Report, 2023)
Lower outdoor temperatures lead to significant drops in heat pump COP, driven by:
Reduced evaporating pressure, raising the compressor pressure ratio and increasing energy consumption
Decreased refrigerant mass flow, impairing heat transfer at the evaporator
Frequent defrost cycles, consuming auxiliary power and disrupting steady-state operation
(Source: Journal of Building Engineering, 2021)
️ Design tip: In climates with seasonal lows below −10°C, systems should include vapor injection (EVI), optimized expansion valves, or hybrid solutions to stabilize performance.

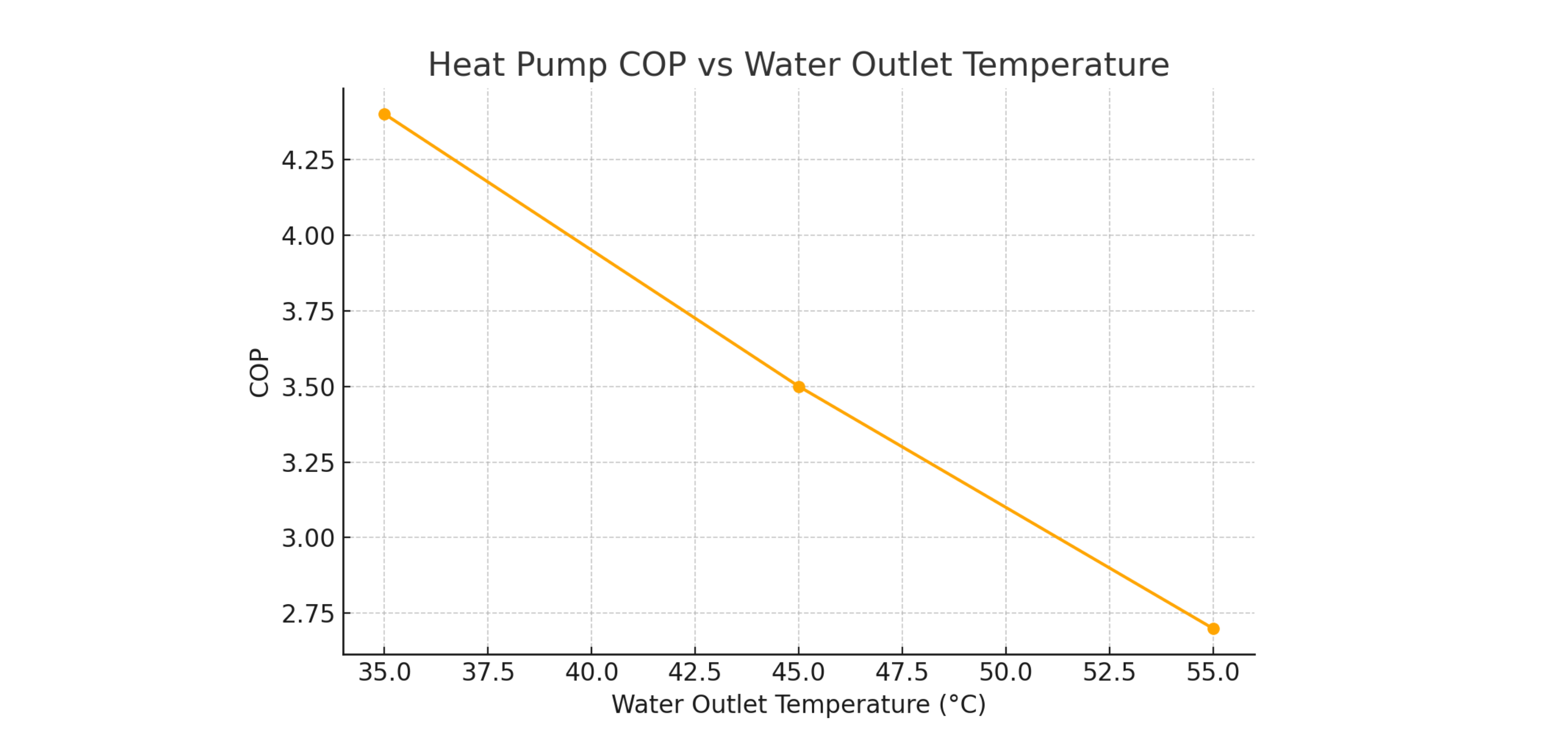

Raising the water outlet temperature increases the temperature lift the system must overcome, leading to lower heat pump COP and efficiency. According to Fraunhofer ISE:
| Water Outlet Temp | Typical COP Range | Relative COP Loss (vs. 35°C) |
| 35°C | 4.0–4.8 | — |
| 45°C | 3.2–3.8 | 15–25% |
| 55°C | 2.5–3.0 | 30–40% |
(Source: Fraunhofer ISE White Paper, 2023)
As outlet temperature rises:
Compressor discharge temperature may exceed 150°C, stressing thermal limits
System pressure increases, especially with R290 refrigerant where high-side pressure at 55°C can reach 26 bar
Lubricant breakdown risk rises due to high temperature and chemical interaction
Practical note: In high-temperature DHW applications, it's recommended to incorporate thermal buffers or cascade systems to reduce direct compressor load and extend equipment life.
Extreme temperature combinations pose a severe challenge to maintaining stable heat pump COP.
According to simulations from ETH Zurich:
At −10°C ambient + 55°C outlet, heat pump COP may decrease by up to 60%
Compressor power consumption can rise by 120–150%
(Source: Energy Conversion and Management, 2022)
Risk scenario: A retrofit project in Innsbruck (Austria) showed that a standard air-to-water unit failed to maintain COP above 2.0 during a -12°C cold front with high DHW demand, leading to reliance on electric backup heaters.
To improve heat pump COP in real-world conditions, a multi-pronged engineering approach is required.
Inverter-driven compressors enable precise modulation to match real-time load
EVI (Economizer Cycle) enhances low-temp performance
Two-stage compression mitigates performance drops in extreme cold
(Source: Applied Thermal Engineering, 2021)
R290 and R32 offer favorable thermodynamics and low GWP
CO₂ transcritical cycles show promise in high-temp DHW systems, especially with ejector technology
(Source: Science and Technology for the Built Environment, 2023)
Deployment tip: For markets like Central Europe, using R290 in split-type or indirect loop systems combines low-GWP compliance with robust performance and higher heat pump COP.
Follow EN 14825 for seasonal performance benchmarks
Design for low supply temperatures (35–45°C) wherever possible
Explore hybrid integration, such as solar thermal preheating or gas backup
Planning insight: Heat pump COP should be considered under both mild and extreme seasonal test points. Systems should be rated not only at A7/W35, but also under worst-case A−10/W55 to ensure year-round reliability.
Future efforts are expected to focus heavily on raising heat pump COP under variable environmental loads. Emerging directions include:
AI-based COP prediction models to improve real-time control
Advanced refrigerants and phase-change materials
Standard evolution, such as IEC 63139, which addresses wide-range temperature test conditions
✅ Key Takeaways:
Ambient Temperature (7°C → -7°C) → heat pump COP drops 20–30%
Water Outlet Temp (35°C → 55°C) → heat pump COP drops 30–45%
Combined Conditions → heat pump COP may decrease up to 60%, energy use can double
To handle complex operating conditions, next-generation heat pump systems must prioritize improving heat pump COP through smarter system design and adaptive control. These systems require more intelligent control, climate-adaptive refrigerants, and resilient component design. Future-ready systems must integrate thermodynamic understanding, field-based optimization, and digital intelligence to deliver reliable efficiency across all seasons and geographies.
