Heat pumps are revolutionizing the way we heat our homes, offering sustainable and energy-efficient alternatives to traditional boilers. Among the essential components that make up a heating-focused air-to-water heat pump, two stand out for their direct role in thermal exchange: the evaporator coil and the condenser coil.
This article explores the key differences between condenser and evaporator coils, specifically within the context of heating heat pumps. While the basic principles apply across all HVAC systems, this focused discussion will help you understand how these coils function during heating cycles, how their design impacts efficiency, and what types are commonly used in low-ambient temperature systems designed for compact residential homes.

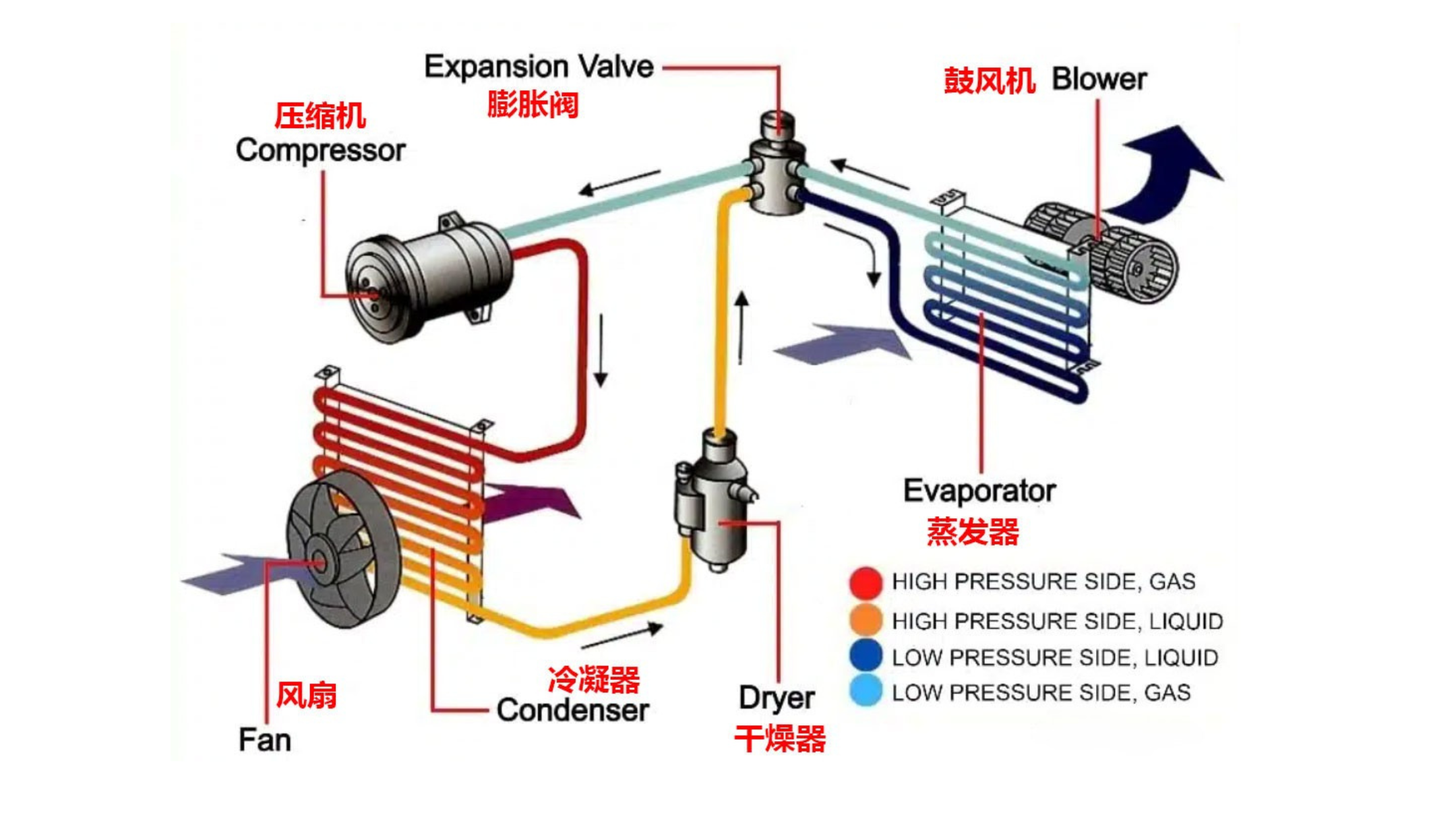

A typical heating heat pump consists of four major components:
Compressor – Compresses low-pressure refrigerant gas into a high-pressure, high-temperature state.
Throttling Device (e.g. Expansion Valve) – Reduces the pressure of the refrigerant before it enters the evaporator.
Evaporator Coil – Absorbs heat from the outdoor air.
Condenser Coil – Releases the collected heat into indoor heating systems such as radiators or underfloor pipes.
Each part of this closed-loop system plays a critical role in transferring heat. The compressor and throttling device control refrigerant pressure and flow rate, while the evaporator vs condenser coil pairing handles the physical heat exchange. Without optimized coil design, even the best compressor can't compensate for inefficiencies in heat absorption or release.

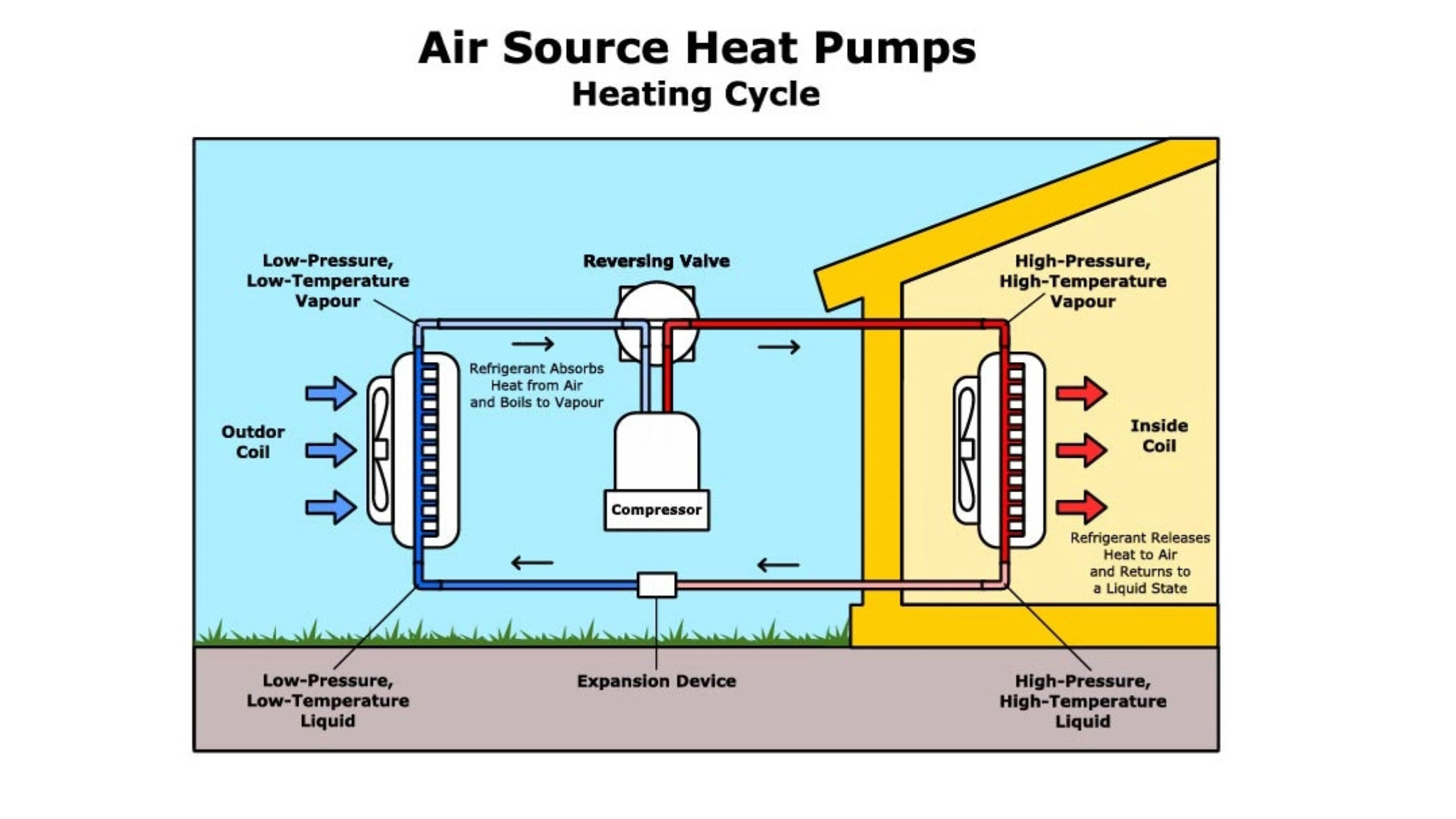

In a heating heat pump, the evaporator coil is typically located in the outdoor unit. It absorbs thermal energy from the ambient air—even in temperatures as low as -25°C in modern R290 systems. The refrigerant inside the coil evaporates as it collects this heat.
The condenser coil, located in the indoor unit, receives the hot, high-pressure refrigerant vapor. As it releases heat into the water heating system, the refrigerant condenses back into a liquid.
This is the fundamental condenser evaporator difference in heating mode:
The evaporator is the heat absorber (outdoor), while
The condenser is the heat emitter (indoor).
During cooling cycles (in reversible heat pumps), these roles switch. The evaporator becomes the indoor cooling element, while the condenser coil transfers heat outside. But for heating-dominant applications, the focus remains on maximizing performance during the heating cycle.
Heat transfer is enabled by the refrigerant's phase change—from liquid to gas in the evaporator, and from gas to liquid in the condenser. This cycle is powered by the compressor and made effective by the coil surface area, material conductivity, and ambient temperature. That's why knowing the subtle design differences between condenser and evaporator is more than academic—it's about real-world performance.
Even outside the context of heating-only applications, the functional difference between the two coils remains foundational. Here's a side-by-side comparison:
| Feature | Evaporator Coil | Condenser Coil |
|---|---|---|
| Function | Absorbs heat into refrigerant | Releases heat from refrigerant |
| Location (Heating Mode) | Outdoor unit | Indoor unit |
| Location (Cooling Mode) | Indoor unit | Outdoor unit |
| Temperature Behavior | Low-temperature side | High-temperature side |
| Phase Change Direction | Liquid → Gas | Gas → Liquid |
| Typical Design | Larger, exposed to outdoor air | Compact, integrated with water tank |
This high-level overview helps illustrate the evaporator vs condenser coil roles in both heating and cooling modes, and clarifies why they are not interchangeable despite being part of the same refrigerant cycle.
When comparing evaporator coil vs condenser coil, it’s important to understand that they may differ in material, design, and purpose.
Copper tube + aluminum fins: This combination remains the industry standard due to copper’s excellent thermal conductivity and aluminum’s affordability.
Microchannel aluminum coils: These are increasingly used in compact systems for their heat transfer efficiency and smaller form factor.
Outdoor evaporators often use hydrophilic coatings to enhance drainage and resist frost.
Indoor condensers may need anti-limescale treatment for hard water conditions.
Evaporators tend to be larger due to the lower heat density in outdoor air.
Condensers are typically more compact, focused on rapid heat transfer to indoor systems.
Understanding the spatial difference between condenser and evaporator coils is critical for installation planning:
In heating mode:
Evaporator coil: Located outdoors
Condenser coil: Located indoors
In cooling mode:
The roles are reversed
Split heat pump systems further complicate placement by connecting indoor and outdoor coils via refrigerant piping. This requires careful consideration of pipe length, insulation, and service access.
In cold-weather regions, especially central and northern Europe or North America, coil efficiency becomes even more important.
Evaporator coils must function well in freezing air, requiring defrost cycles, wide-fin spacing, and moisture-resistant coatings.
Condenser coils must deliver stable output to floor heating or radiator systems—often at 35–60°C—with high water-side efficiency.
Design differences directly impact SCOP (seasonal coefficient of performance), making coil selection a core part of heat pump engineering.
Proper maintenance is key to sustained performance:
Clean leaves, ice, and dirt from outdoor units regularly
Ensure airflow is not blocked by walls, fencing, or snow
Schedule annual technician inspections
Flush water circuits to prevent limescale buildup
Clean heat exchanger surfaces where accessible
Verify that circulation pumps and sensors are working correctly
Neglecting either coil can lead to poor performance, system cycling, and shortened equipment lifespan.
Understanding the differences between evaporator and condenser coils is crucial for optimizing heat pump performance, especially in small houses and apartments in colder regions. These components work in tandem to deliver efficient, eco-friendly heating—especially when coil design is properly matched to the installation environment.
